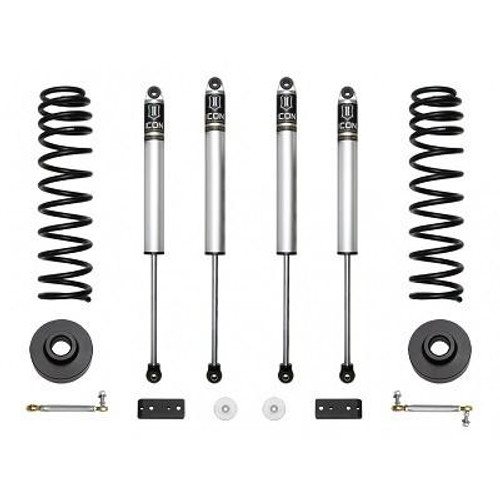

ICON Vehicle Dynamics 2020+ Jeep Gladiator JT 2.5" Stage 1 Lift System # K22101. This Stage 1 Jeep Gladiator suspension lift system will provide approximately 2.5" inches of front suspension lift and approximately 1.35" rear lift to achieve level stance. ICON developed this lift using their accelerated testing process dubbed the ICON1K R&D program. That means ICON has logged over 1000 miles in the dirt pushing the JT to off-road extremes that helped identify limiting factors in the factory OE components. ICON then developed their own products to improve wherever the factory parts fell short. This ICON 2.5" Jeep Gladiator 2.5" lift kit has been tweaked, tuned, and revised several times over the course of this ICON1K testing in an effort to provide unparalleled ride quality and vehicle dynamics for everything from rock crawling to high-speed desert running. By removing the aforementioned limiting factors this ICON suspension system completely redefines the potential of the 2020-UP Jeep Gladiator with wheel travel gains over 30%!
Gladiator Lift Kit Features:
- 2.5" lift height
- Fits 35" tires (37" with extended bump stop spacer kit)
- 33% Front & 23% Rear Increase in Wheel Travel
- Improves on and off-road ride quality over stock
- Dual rate coil springs with lifetime guarantee against sagging/breakage
- Billet aluminum rear 1.375" coil spacers eliminate the factory rake
- 2.0 Aluminum Series Front & Rear Shocks
- Adjustable Billet Aluminum Front Sway Bar Links
- 100% bolt-on system makes for an easy install
- ICON 1K tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- No welding or cutting required
- Made in the USA
- Add-On:
- 22042 - 20-UP JT / 18-UP JL / 07-18 JK FRONT HYD BUMP STOP KIT
- LTL:
- N
- OEM Wheels & Tires Fitment:
- Yes
- Position:
- Front and Rear
- Recommended Aftermarket Tires:
- 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit part # 22071)
- Recommended Aftermarket Wheels:
- ICON Alloys - 18x9 w/ 4.5" Backspace / -12mm Offset
- Supplier Order ID:
- 749823G
- Supplier Part Number:
- icoK22101
- Title:
- ICON 2020-2023 Jeep Gladiator, 2" Lift, Stage 1 Suspension System
- Application Notes:
- Lift heights based around a typical Jeep build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher if installed on a stock weighted vehicle.
- Maximum Lift Front:
- 2
- Maximum Lift Rear:
- 1.38
- California Prop 65 Notice:
- WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
- Adjustable Damping:
- No
- Front Spring Rate Type:
- Progressive Dual Rate
