Description

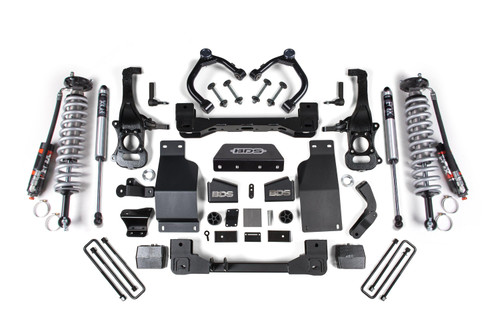

Give your Chevy Trail Boss or GMC AT4 1500 (2020-2026) 4WD more height, room for bigger tires, and better trail capability with the 4 Inch Lift Kit | FOX Coil-Over | Chevy Trail Boss or GMC AT4 1500 (20-26) 4WD | Diesel | FOX 2.5 Performance Elite Coil-Over / FOX 2.0 Performance Series Shock. It provides 4 in. of front lift. Once installed, it makes room for tires up to 34 x 12.5 in.
This configuration pairs FOX 2.5 Performance Elite Coil-Over front coil-overs with FOX 2.0 Performance Series Shock rear shocks.
Features
- Lift height: 4 in. front
- Heavy 1/4 in. laser-cut steel crossmembers that keep the underside clear
- Bolt-together skid plate system shields key components off-road
- CNC-machined ductile iron knuckles restore proper steering geometry at the taller height
- Front differential relocation brackets to protect CV joint angles
- Includes FOX 2.5 Performance Elite Coil-Over
- Clearance for tires up to 34 x 12.5 in.
Specifications
- Life Cycle Status Code
- 2
- Coil Over Option
- FOX 2.5 Performance Elite Coil-Over
- Drivetrain
- 4WD
- Engine Type
- Diesel
- Front Lift Height
- 4 in.
- Max Tire Size
- 34 x 12.5 in.
- Rear Lift Method
- Block
- Rear Shock Option
- FOX 2.0 Performance Series Shock
- Shocks Included
- Yes
- Brand Logo
- Resources & Documents
- California Prop 65 Notice
- WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Drive
- 4WD
- Fuel Type
- Diesel
- Kit Components
- Includes one BDS011518, 2019-2024 Chevy/GMC 1500 5 inch Rear Box Kit, UPC Code 658848611935Includes one BDS021664, 2019-2024 Chevy/GMC 1500 Knuckle Box 1of2 w/UCA (4 inch and 6 inch Compatible), UPC Code 658848615056Includes one BDS021665, 2019-2024
- Last Update
- 2026-10-20 16:35:15
- Lift Height
- 4.0 Inch
- Sold As
- Kit
- Universal
- No
- Vehicle Type
- Truck/SUV
- Warranty
- Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
