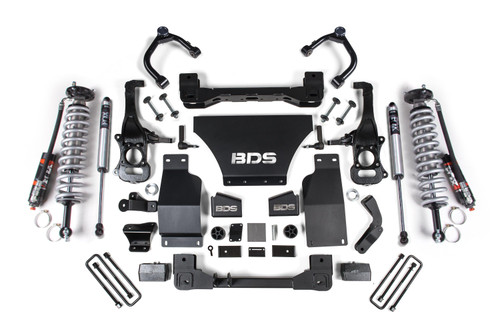

Built for drivers who want more clearance and a stronger stance, the 4 Inch Lift Kit | FOX Coil-Over | Chevy Trail Boss or GMC AT4 1500 (19-26) 4WD | Gas | FOX 2.5 Performance Elite Coil-Over / FOX 2.0 Performance Series Shock transforms your Chevy Trail Boss or GMC AT4 1500 (2019-2026) 4WD. It provides 4 in. of front lift. Once installed, it makes room for tires up to 34 x 12.5 in.
This configuration pairs FOX 2.5 Performance Elite Coil-Over front coil-overs with FOX 2.0 Performance Series Shock rear shocks.
Features
- Lift height: 4 in. front
- Heavy 1/4 in. laser-cut steel crossmembers that keep the underside clear
- Bolt-together skid plate system shields key components off-road
- CNC-machined ductile iron knuckles restore proper steering geometry at the taller height
- Differential drop brackets help keep CV and driveline angles in check
- Includes FOX 2.5 Performance Elite Coil-Over
- Clearance for tires up to 34 x 12.5 in.
- Life Cycle Status Code:
- 2
- Coil Over Option:
- FOX 2.5 Performance Elite Coil-Over
- Drivetrain:
- 4WD
- Engine Type:
- Gas
- Front Lift Height:
- 4 in.
- Max Tire Size:
- 34 x 12.5 in.
- Rear Lift Method:
- Block
- Rear Shock Option:
- FOX 2.0 Performance Series Shock
- Shocks Included:
- Yes
