Description

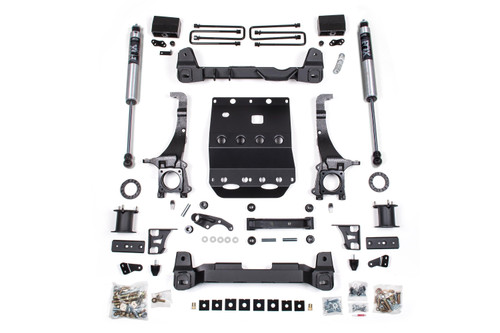

Give your Toyota Tacoma (2016-2023) 4WD more height, room for bigger tires, and better trail capability with the 6 Inch Lift Kit | Toyota Tacoma (16-23) 4WD | FOX 2.0 Performance Series. It raises the front 6 in. and the rear 4 in. Once installed, it makes room for tires up to 35 x 12.5 in.
This version includes FOX 2.0 Performance Series rear shocks.
Features
- Lift height: 6 in. front (cross-member), 4 in. rear (block)
- Tall-arch 1/4 in. steel crossmembers built for clearance and strength
- Bolt-together skid plate system shields key components off-road
- Replacement steering knuckles keep steering angles correct after the lift
- Differential drop brackets help keep CV and driveline angles in check
- Heavy-duty rear lift blocks for added height without sacrificing load capacity
- Includes FOX 2.0 Performance Series shocks
- Clearance for tires up to 35 x 12.5 in.
Specifications
- Life Cycle Status Code
- 2
- Drivetrain
- 4WD
- Front Lift Height
- 6 in.
- Front Lift Method
- Cross-Member
- Max Tire Size
- 35 x 12.5 in.
- Rear Lift Height
- 4 in.
- Rear Lift Method
- Block
- Rear Shock Option
- FOX 2.0 Performance Series
- Shocks Included
- Yes
- Brand Logo
- Resources & Documents
- California Prop 65 Notice
- WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Color
- Clear
- Drive
- 4WD
- Finish
- Anodized
- Kit Components
- Includes one BDS018408, 2005-2023 Toyota Tacoma 4 inch Rear Block Kit, UPC Code 658848614479Includes one BDS028600, 2005-2023 Toyota Tacoma Front Box Kit 1 of 4, UPC Code 658848616190Includes one BDS028603, 2005-2023 Tacoma 6 inch Frt Box Kit 4 of 4
- Last Update
- 2026-10-20 15:38:26
- Lift Height
- 6.0 Inch
- Sold As
- Kit
- Universal
- No
- Vehicle Type
- Truck/SUV
- Warranty
- Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
