Description

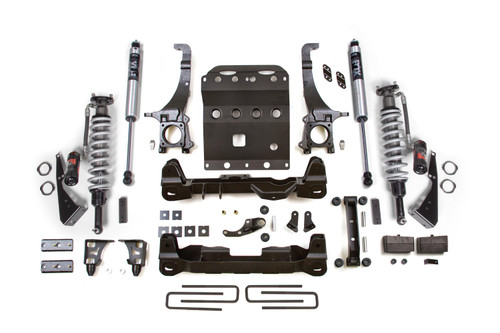

Give your Toyota Tacoma (2016-2023) 4WD more height, room for bigger tires, and better trail capability with the 4 Inch Lift Kit | FOX 2.5 Performance Elite Coil-over | Toyota Tacoma (16-23) 4WD | FOX 2.0 Performance Series. It adds 4 in. of lift at both ends. Once installed, it makes room for tires up to 33 x 12.5 in.
This version includes FOX 2.0 Performance Series rear shocks.
Features
- Lift height: 4 in. front (coil-over), 4 in. rear (block)
- Tall-arch 1/4 in. steel crossmembers built for clearance and strength
- Bolt-together skid plate system shields key components off-road
- Front differential relocation brackets to protect CV joint angles
- Heavy-duty rear lift blocks for added height without sacrificing load capacity
- Lower control arms help locate the axle at the new ride height
- Includes FOX 2.0 Performance Series shocks
- Clearance for tires up to 33 x 12.5 in.
Specifications
- Country of Origin (Primary)
- US
- Life Cycle Status Code
- 2
- Drivetrain
- 4WD
- Front Lift Height
- 4 in.
- Front Lift Method
- Coil-Over
- Max Tire Size
- 33 x 12.5 in.
- Rear Lift Height
- 4 in.
- Rear Lift Method
- Block
- Rear Shock Option
- FOX 2.0 Performance Series
- Shocks Included
- Yes
- Brand Logo
- Resources & Documents
- California Prop 65 Notice
- WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Color
- Black/Silver
- Drive
- 4WD
- Kit Components
- Includes: Kit: BDS 05-23 Toyota Tacoma, Front Coilover, 2.5 Truck PES, R/R, DSC, 6 Inch Lift, Fox 2.0 Shock 26.15 x 16.05 x 2- S50/EB1, 2005-2023 Tacoma 3 Inch Rear Block Kit, 2005-2023 Toyota Tacoma Knuckle Box Kit - DS, 2005-2023 Toyota Tacoma Knu
- Last Update
- 2026-10-20 15:35:39
- Lift Height
- 4.0 Inch
- Material
- Steel
- Sold As
- Kit
- Universal
- No
- Vehicle Type
- Truck/SUV
- Warranty
- Lifetime Replacement Warranty
