Description

Give your Toyota Tacoma (2016-2023) 4WD more height, room for bigger tires, and better trail capability with the 4 Inch Lift Kit | Toyota Tacoma (16-23) 4WD | FOX 2.0 Performance Series. It raises the front 4 in. and the rear 3 in. Once installed, it makes room for tires up to 33 x 12.5 in.

This version includes FOX 2.0 Performance Series rear shocks.

Features

  • Lift height: 4 in. front, 3 in. rear (block)
  • Tall-arch 1/4 in. steel crossmembers built for clearance and strength
  • Front skid plate adds underbody protection and stiffens the front subframe
  • Replacement steering knuckles keep steering angles correct after the lift
  • Differential drop brackets help keep CV and driveline angles in check
  • Heavy-duty rear lift blocks for added height without sacrificing load capacity
  • Includes FOX 2.0 Performance Series shocks
  • Clearance for tires up to 33 x 12.5 in.

Specifications

Life Cycle Status Code
2
Drivetrain
4WD
Front Lift Height
4 in.
Max Tire Size
33 x 12.5 in.
Rear Lift Height
3 in.
Rear Lift Method
Block
Rear Shock Option
FOX 2.0 Performance Series
Shocks Included
Yes
California Prop 65 Notice
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Color
Clear
Drive
4WD
Finish
Anodized

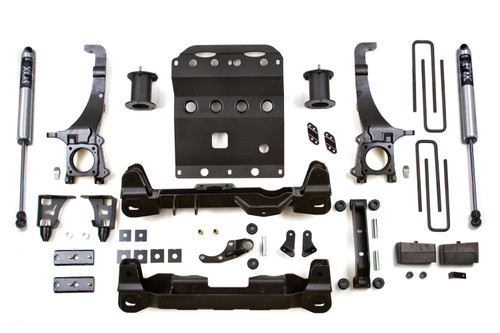

Kit Components
Includes one BDS018318, 2005-2023 Tacoma 3 inch Rear Block Kit, UPC Code 658848614455Includes one BDS028403, 2005-2023 Tacoma 4 inch Front Box Kit 4 of 4, UPC Code 658848616176Includes one BDS028600, 2005-2023 Toyota Tacoma Front Box Kit 1 of 4, UPC
Last Update
2026-10-20 15:38:26
Lift Height
4.0 Inch
Sold As
Kit
Universal
No
Vehicle Type
Truck/SUV
Warranty
Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
4 Inch Lift Kit | Toyota Tacoma (16-23) 4WD | FOX 2.0 Performance Series
