Description

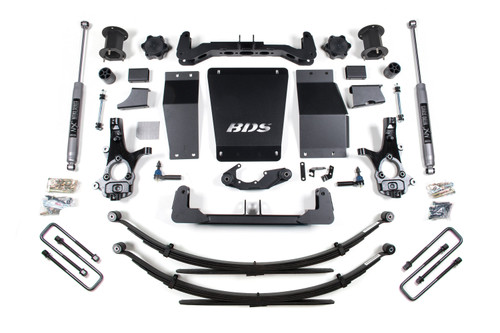

Built for drivers who want more clearance and a stronger stance, the 6.5 Inch Lift Kit | Chevy Silverado or GMC Sierra 1500 (14-18) 4WD | Leaf Springs / NX2 Nitro Series / Cast Steel transforms your Chevy Silverado or GMC Sierra 1500 (2014-2018) 4WD. It raises the front 6.5 in. and the rear 4 in. Once installed, it makes room for tires up to 33 x 12.5 in.
This version includes NX2 Nitro Series rear shocks. Rear lift is handled by the leaf springs option. It is configured for trucks with Cast Steel factory control arms.
Features
- Lift height: 6.5 in. front (cross member & strut spacer), 4 in. rear
- Tall-arch 1/4 in. steel crossmembers built for clearance and strength
- Front skid plate adds underbody protection and stiffens the front subframe
- CNC-machined ductile iron knuckles restore proper steering geometry at the taller height
- Front differential relocation brackets to protect CV joint angles
- Includes NX2 Nitro Series shocks
- Clearance for tires up to 33 x 12.5 in.
Specifications
- Drivetrain
- 4WD
- Factory Control Arm Type
- Cast Steel
- Front Lift Height
- 6.5 in.
- Front Lift Method
- Cross Member & Strut Spacer
- Max Tire Size
- 33 x 12.5 in.
- Rear Lift Height
- 4 in.
- Rear Lift Option
- Leaf Springs
- Rear Shock Option
- NX2 Nitro Series
- Shocks Included
- Yes
- Brand Logo
- Resources & Documents
- California Prop 65 Notice
- WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Color
- Black
- Drive
- 4WD
- Engine Years
- 2014-2018
- Finish
- Powdercoat
- Kit Components
- BDS001559 (x2), BDS011557, BDS021601, BDS021660, BDS021662, BDS021663, BDS85759 (x2)
- Last Update
- 2026-10-20 15:32:03
- Lift Height
- 6.5 Inch
- Material
- Cast Steel
- Sold As
- Kit
- Universal
- No
- Vehicle Type
- Truck/SUV
- Warranty
- Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
