Description

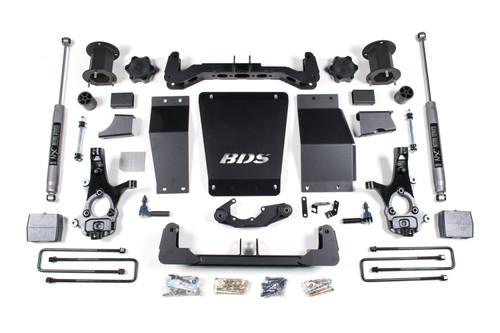

Built for drivers who want more clearance and a stronger stance, the 6.5 Inch Lift Kit | Chevy Silverado or GMC Sierra 1500 (14-18) 4WD | 4 Inch Block Kit / NX2 Nitro Series / Cast Steel transforms your Chevy Silverado or GMC Sierra 1500 (2014-2018) 4WD. It raises the front 6.5 in. and the rear 4 in. Once installed, it makes room for tires up to 33 x 12.5 in.

This version includes NX2 Nitro Series rear shocks. Rear lift is handled by the 4 in. block kit option. It is configured for trucks with Cast Steel factory control arms.

Features

  • Lift height: 6.5 in. front (cross member & strut spacer), 4 in. rear
  • Heavy 1/4 in. laser-cut steel crossmembers that keep the underside clear
  • Bolt-together skid plate system shields key components off-road
  • CNC-machined ductile iron knuckles restore proper steering geometry at the taller height
  • Front differential relocation brackets to protect CV joint angles
  • Includes NX2 Nitro Series shocks
  • Clearance for tires up to 33 x 12.5 in.

Specifications

Drivetrain
4WD
Factory Control Arm Type
Cast Steel
Front Lift Height
6.5 in.
Front Lift Method
Cross Member & Strut Spacer
Max Tire Size
33 x 12.5 in.
Rear Lift Height
4 in.
Rear Lift Option
4 in. Block Kit
Rear Shock Option
NX2 Nitro Series
Shocks Included
Yes
California Prop 65 Notice
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Color
Black
Drive
4WD
Engine Years
2014-2018
Finish
Powdercoat
Kit Components
BDS011505, BDS021601, BDS021660, BDS021662, BDS021663, BDS85759 (x2)
Last Update
2026-10-20 15:32:03
Lift Height
6.5 Inch
Material
Cast Steel
Sold As
Kit
Universal
No
Vehicle Type
Truck/SUV
Warranty
Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
6.5 Inch Lift Kit | Chevy Silverado or GMC Sierra 1500 (14-18) 4WD | 4 Inch Block Kit / NX2 Nitro Series / Cast Steel

6.5 Inch Lift Kit | Chevy Silverado or GMC Sierra 1500 (14-18) 4WD | 4 Inch Block Kit / NX2 Nitro Series / Cast Steel
