Description

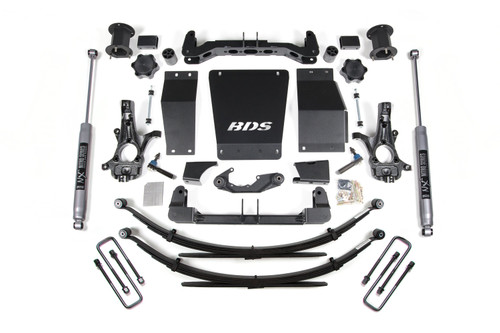

Give your Chevy Silverado or GMC Sierra 1500 (2014-2018) 4WD more height, room for bigger tires, and better trail capability with the 4.5 Inch Lift Kit | Chevy Silverado or GMC Sierra 1500 (14-18) 4WD | Leaf Springs / NX2 Nitro Series / Cast Steel. It raises the front 4.5 in. and the rear 2 in. Once installed, it makes room for tires up to 32 x 12.5 in.

This version includes NX2 Nitro Series rear shocks. Rear lift is handled by the leaf springs option. It is configured for trucks with Cast Steel factory control arms.

Features

  • Lift height: 4.5 in. front (cross member & strut spacer), 2 in. rear (block)
  • Tall-arch 1/4 in. steel crossmembers built for clearance and strength
  • Bolt-together skid plate system shields key components off-road
  • CNC-machined ductile iron knuckles restore proper steering geometry at the taller height
  • Differential drop brackets help keep CV and driveline angles in check
  • Includes NX2 Nitro Series shocks
  • Clearance for tires up to 32 x 12.5 in.

Specifications

Drivetrain
4WD
Factory Control Arm Type
Cast Steel
Front Lift Height
4.5 in.
Front Lift Method
Cross Member & Strut Spacer
Max Tire Size
32 x 12.5 in.
Rear Lift Height
2 in.
Rear Lift Method
Block
Rear Lift Option
Leaf Springs
Rear Shock Option
NX2 Nitro Series
Shocks Included
Yes
California Prop 65 Notice
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Color
Black
Drive
4WD
Engine Years
2014-2018
Finish
Powdercoat
Kit Components
BDS001559 (x2), BDS011456, BDS021406, BDS021462, BDS021660, BDS021663, BDS85759 (x2)
Last Update
2026-10-20 15:32:54
Lift Height
4.5 Inch
Material
Cast Steel
Sold As
Kit
Universal
No
Vehicle Type
Truck/SUV
Warranty
Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
