Description

Built for drivers who want more clearance and a stronger stance, the 8 Inch Lift Kit | Chevy Silverado or GMC Sierra 1500 (14-18) 4WD | FOX 2.0 Performance Series / Cast Steel transforms your Chevy Silverado or GMC Sierra 1500 (2014-2018) 4WD. It raises the front 8 in. and the rear 6 in. Once installed, it makes room for tires up to 35 x 12.5 in.

This version includes FOX 2.0 Performance Series rear shocks. It is configured for trucks with Cast Steel factory control arms.

Features

  • Lift height: 8 in. front (cross-member), 6 in. rear (block)
  • Heavy 1/4 in. laser-cut steel crossmembers that keep the underside clear
  • Bolt-together skid plate system shields key components off-road
  • CNC-machined ductile iron knuckles restore proper steering geometry at the taller height
  • Differential drop brackets help keep CV and driveline angles in check
  • Includes FOX 2.0 Performance Series shocks
  • Clearance for tires up to 35 x 12.5 in.

Specifications

Country of Origin (Primary)
US
Life Cycle Status Code
2
Drivetrain
4WD
Factory Control Arm Type
Cast Steel
Front Lift Height
8 in.
Front Lift Method
Cross-Member
Max Tire Size
35 x 12.5 in.
Rear Lift Height
6 in.
Rear Lift Method
Block
Rear Shock Option
FOX 2.0 Performance Series
Shocks Included
Yes
California Prop 65 Notice
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Color
Clear
Drive
4WD
Finish
Anodized

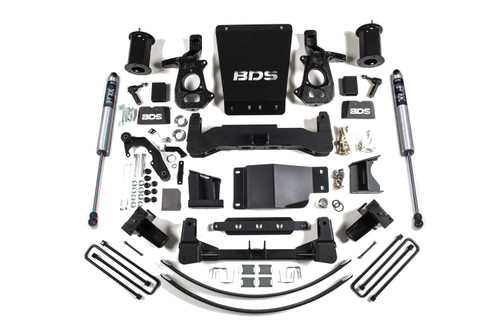

Kit Components
Includes one BDS021607, 14-up Chevy 1500 8 inch Rear Box Kit, UPC Code 658848614790Includes one BDS021802, 14-up Chevy 1500 8 inch Frt Box Kit 1of2, UPC Code 658848615261Includes one BDS021803, 14-up Chevy 1500 8 inch Frt Box Kit 2of2, UPC Code 6588
Last Update
2026-10-20 15:41:14
Lift Height
8.0 Inch
Sold As
Kit
Universal
No
Vehicle Type
Truck/SUV
Warranty
Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
8 Inch Lift Kit | Chevy Silverado or GMC Sierra 1500 (14-18) 4WD | FOX 2.0 Performance Series / Cast Steel
