Description

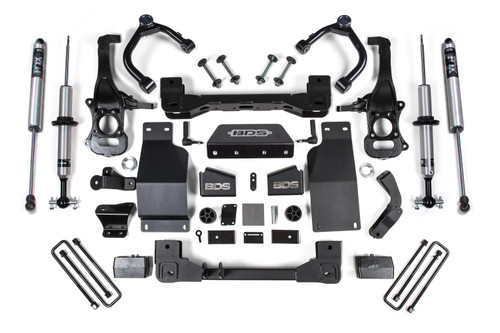

Give your Chevy Silverado or GMC Sierra 1500 (2019-2024) 4WD more height, room for bigger tires, and better trail capability with the 4 Inch Lift Kit | Chevy Silverado or GMC Sierra 1500 (19-24) 4WD | Diesel | FOX 2.0 Performance Series / FOX 2.0 Performance Series. It raises the front 4 in. and the rear 2 in. Once installed, it makes room for tires up to 33 x 12.5 in.

This version includes FOX 2.0 Performance Series rear shocks. Front shock option: FOX 2.0 Performance Series.

Features

  • Lift height: 4 in. front (cross-member), 2 in. rear (block)
  • Heavy 1/4 in. laser-cut steel crossmembers that keep the underside clear
  • Bolt-together skid plate system shields key components off-road
  • CNC-machined ductile iron knuckles restore proper steering geometry at the taller height
  • Front differential relocation brackets to protect CV joint angles
  • Includes FOX 2.0 Performance Series shocks
  • Clearance for tires up to 33 x 12.5 in.

Specifications

Life Cycle Status Code
2
Drivetrain
4WD
Engine Type
Diesel
Front Lift Height
4 in.
Front Lift Method
Cross-Member
Front Shock Option
FOX 2.0 Performance Series
Max Tire Size
33 x 12.5 in.
Rear Lift Height
2 in.
Rear Lift Method
Block
Rear Shock Option
FOX 2.0 Performance Series
Shocks Included
Yes
California Prop 65 Notice
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Color
Clear
Drive
4WD
Finish
Anodized
Fuel Type
Diesel
Kit Components
Includes one BDS011316, 2019-2024 Chevy/GMC 1500 4 inch Rear Box Kit, UPC Code 658848611737Includes one BDS021664, 2019-2024 Chevy/GMC 1500 Knuckle Box 1of2 w/UCA (4 inch and 6 inch Compatible), UPC Code 658848615056Includes one BDS021665, 2019-2024
Last Update
2026-10-20 16:35:54
Lift Height
4.0 Inch
Sold As
Kit
Universal
No
Vehicle Type
Truck/SUV
Warranty
Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
4 Inch Lift Kit | Chevy Silverado or GMC Sierra 1500 (19-24) 4WD | Diesel | FOX 2.0 Performance Series / FOX 2.0 Performance Series

4 Inch Lift Kit | Chevy Silverado or GMC Sierra 1500 (19-24) 4WD | Diesel | FOX 2.0 Performance Series / FOX 2.0 Performance Series
