Description

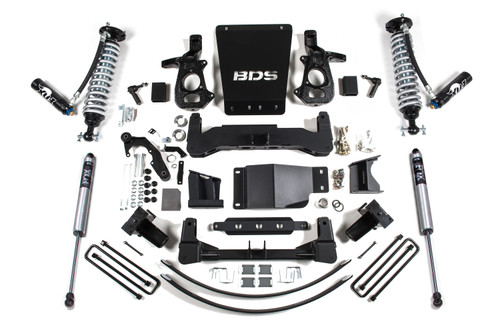

The 8 Inch Lift Kit | FOX 2.5 Coilover DSC | Chevy Silverado or GMC Sierra 1500 (14-18) 4WD | Cast Steel is a complete suspension upgrade that raises your Chevy Silverado or GMC Sierra 1500 (2014-2018) 4WD and makes room for larger rubber. It raises the front 8 in. and the rear 6 in. Once installed, it makes room for tires up to 35 x 12.5 in.

It is configured for trucks with Cast Steel factory control arms.

Features

  • Lift height: 8 in. front (coil-over), 6 in. rear (block)
  • Tall-arch 1/4 in. steel crossmembers built for clearance and strength
  • Bolt-together skid plate system shields key components off-road
  • CNC-machined ductile iron knuckles restore proper steering geometry at the taller height
  • Differential drop brackets help keep CV and driveline angles in check
  • Clearance for tires up to 35 x 12.5 in.

Specifications

Life Cycle Status Code
2
Drivetrain
4WD
Factory Control Arm Type
Cast Steel
Front Lift Height
8 in.
Front Lift Method
Coil-Over
Max Tire Size
35 x 12.5 in.
Rear Lift Height
6 in.
Rear Lift Method
Block
California Prop 65 Notice
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Drive
4WD
Kit Components
Includes one BDS021607, 14-up Chevy 1500 8 inch Rear Box Kit, UPC Code 658848614790Includes one BDS021802, 14-up Chevy 1500 8 inch Frt Box Kit 1of2, UPC Code 658848615261Includes one BDS021803, 14-up Chevy 1500 8 inch Frt Box Kit 2of2, UPC Code 6588
Last Update
2026-10-20 15:42:15
Lift Height
8.0 Inch
Sold As
Kit
Universal
No
Vehicle Type
Truck/SUV
Warranty
Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
