Description

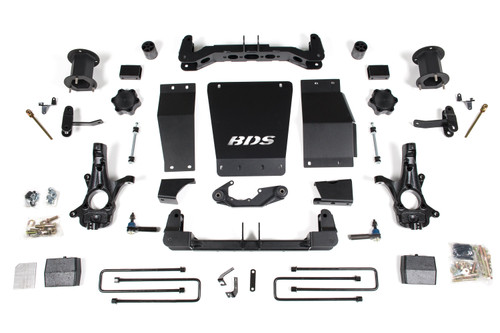

Built for drivers who want more clearance and a stronger stance, the 6 Inch Lift Kit | GMC Sierra 1500 (14-18) 4WD | Magneride Equipped | Aluminum / Stamped Steel transforms your GMC Sierra 1500 (2014-2018) 4WD. It raises the front 6 in. and the rear 5 in. Once installed, it makes room for tires up to 33 x 12.5 in.
It is configured for trucks with Aluminum / Stamped Steel factory control arms.
Features
- Lift height: 6 in. front (cross-member), 5 in. rear (block)
- Tall-arch 1/4 in. steel crossmembers built for clearance and strength
- Front skid plate adds underbody protection and stiffens the front subframe
- CNC-machined ductile iron knuckles restore proper steering geometry at the taller height
- Differential drop brackets help keep CV and driveline angles in check
- Clearance for tires up to 33 x 12.5 in.
Specifications
- Country of Origin (Primary)
- US
- Life Cycle Status Code
- 2
- Drivetrain
- 4WD
- Factory Control Arm Type
- Aluminum / Stamped Steel
- Front Lift Height
- 6 in.
- Front Lift Method
- Cross-Member
- Max Tire Size
- 33 x 12.5 in.
- Rear Lift Height
- 5 in.
- Rear Lift Method
- Block
