Description

Built for drivers who want more clearance and a stronger stance, the 6 Inch Lift Kit | Chevy/GMC Suburban, Tahoe, Yukon/XL 1500 (15-19) 4WD | Magneride Equipped | Aluminum / Stamped Steel transforms your Chevy/GMC Suburban, Tahoe, Yukon/XL 1500 (2015-2019) 4WD. It raises the front 6 in. and the rear 5 in. Once installed, it makes room for tires up to 33 x 12.5 in.

It is configured for trucks with Aluminum / Stamped Steel factory control arms.

Features

  • Lift height: 6 in. front (cross-member), 5 in. rear (coil spring)
  • Heavy 1/4 in. laser-cut steel crossmembers that keep the underside clear
  • Bolt-together skid plate system shields key components off-road
  • CNC-machined ductile iron knuckles restore proper steering geometry at the taller height
  • Front differential relocation brackets to protect CV joint angles
  • Clearance for tires up to 33 x 12.5 in.

Specifications

Country of Origin (Primary)
US
Life Cycle Status Code
2
Drivetrain
4WD
Factory Control Arm Type
Aluminum / Stamped Steel
Front Lift Height
6 in.
Front Lift Method
Cross-Member
Max Tire Size
33 x 12.5 in.
Rear Lift Height
5 in.
Rear Lift Method
Coil Spring
California Prop 65 Notice
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Color
Silver
Drive
4WD
Finish
Powdercoat

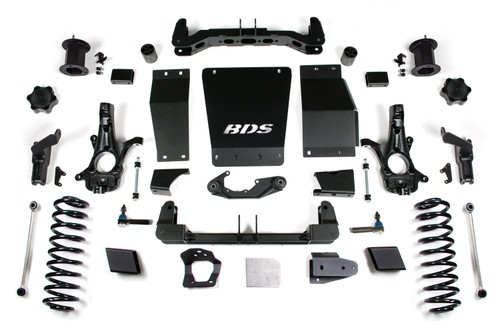

Kit Components
Includes one BDS021518, 15-19 GM SUV AutoRide Rear 5in Box Kit, UPC Code 658848614752Includes one BDS021661, 14-18 GM 1500 - 15-19 GM SUV Knuckle Box - Alum/Stamped, UPC Code 658848615025Includes one BDS021662, 14-18 GM 1500 - 15-19 GM SUV 1500 6 in
Last Update
2026-10-20 15:41:14
Lift Height
6.0 Inch
Sold As
Kit
Universal
No
Vehicle Type
Truck/SUV
Warranty
Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
6 Inch Lift Kit | Chevy/GMC Suburban, Tahoe, Yukon/XL 1500 (15-19) 4WD | Magneride Equipped | Aluminum / Stamped Steel

6 Inch Lift Kit | Chevy/GMC Suburban, Tahoe, Yukon/XL 1500 (15-19) 4WD | Magneride Equipped | Aluminum / Stamped Steel
