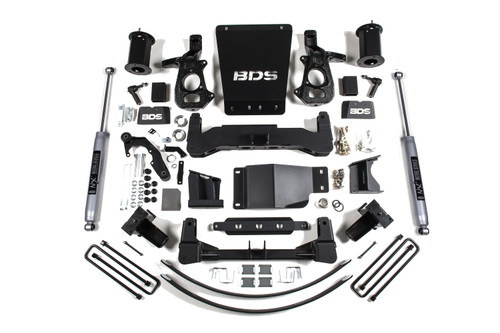

The 8 Inch Lift Kit | Chevy Silverado or GMC Sierra 1500 (14-18) 4WD | NX2 Nitro Series / Aluminum / Stamped Steel is a complete suspension upgrade that raises your Chevy Silverado or GMC Sierra 1500 (2014-2018) 4WD and makes room for larger rubber. It raises the front 8 in. and the rear 6 in. Once installed, it makes room for tires up to 35 x 12.5 in.

This version includes NX2 Nitro Series rear shocks. It is configured for trucks with Aluminum / Stamped Steel factory control arms.

Features

  • Lift height: 8 in. front (cross-member), 6 in. rear (block)
  • Heavy 1/4 in. laser-cut steel crossmembers that keep the underside clear
  • Front skid plate adds underbody protection and stiffens the front subframe
  • CNC-machined ductile iron knuckles restore proper steering geometry at the taller height
  • Front differential relocation brackets to protect CV joint angles
  • Includes NX2 Nitro Series shocks
  • Clearance for tires up to 35 x 12.5 in.

Specifications

Country of Origin (Primary)
US
Life Cycle Status Code
2
Drivetrain
4WD
Factory Control Arm Type
Aluminum / Stamped Steel
Front Lift Height
8 in.
Front Lift Method
Cross-Member
Max Tire Size
35 x 12.5 in.
Rear Lift Height
6 in.
Rear Lift Method
Block
Rear Shock Option
NX2 Nitro Series
Shocks Included
Yes
California Prop 65 Notice
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Color
Silver
Drive
4WD
Finish
Powdercoat
Kit Components
Includes one BDS021607, 14-up Chevy 1500 8 inch Rear Box Kit, UPC Code 658848614790Includes one BDS021800, 14-up Chevy 1500 Knuckle-DRV-stamp/alum, UPC Code 658848615247Includes one BDS021801, 14-up Chevy 1500 Knuckle-PASS-stamp/alum, UPC Code 65884
Last Update
2026-10-20 15:42:15
Lift Height
8.0 Inch
Sold As
Kit
Universal
No
Vehicle Type
Truck/SUV
Warranty
Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
