Description

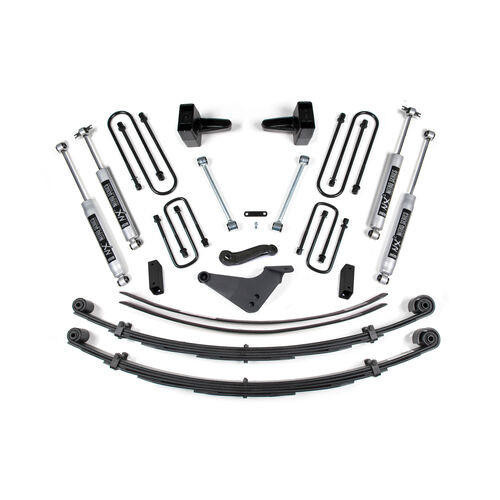

Built for drivers who want more clearance and a stronger stance, the 6 Inch Lift Kit | Ford Excursion (00-05) 4WD | Block Kit and Add-A-Leaf / NX2 Nitro Series transforms your Ford Excursion (2000-2005) 4WD. It raises the front 6 in. and the rear 5 in. Once installed, it makes room for tires up to 35 x 12.5 in.

This version is matched with NX2 Nitro Series shocks for damping tuned to the new height. Rear lift is handled by the block kit and add-a-leaf option.

Features

  • Lift height: 6 in. front (leaf spring), 5 in. rear
  • Glide-Ride multi-leaf springs use a triple-stage progressive design for a smooth ride loaded or empty
  • Fabricated steel lift blocks raise and level the rear
  • New U-bolts sized for the lifted rear
  • Track bar components keep the axle centered under the vehicle
  • Pitman arm correction keeps steering geometry in line
  • Includes NX2 Nitro Series shocks
  • Clearance for tires up to 35 x 12.5 in.

Specifications

Country of Origin (Primary)
US
Life Cycle Status Code
2
Drivetrain
4WD
Front Lift Height
6 in.
Front Lift Method
Leaf Spring
Max Tire Size
35 x 12.5 in.
Rear Lift Height
5 in.
Rear Lift Option
Block Kit and Add-A-Leaf
Shock Option
NX2 Nitro Series
Shocks Included
Yes
California Prop 65 Notice
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Color
Silver
Drive
4WD
Finish
Powdercoat
Kit Components
Includes two BDS003402, Ford F250/350 4in Front Spring, UPC Code 658848611348Includes one BDS013405, 00-01 Ford F250/350 4in Front Bx Kt w/cu, UPC Code 658848613380Includes one BDS069509, 5in Rear Cast Iron Blocks 9/16 Pin 9/16, UPC Code 65884861724
Last Update
2026-10-20 16:11:18
Lift Height
6.0 Inch
Sold As
Kit
Universal
No
Vehicle Type
Truck/SUV
Warranty
Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
