Description

Give your Ford Excursion (2000-2005) 4WD more height, room for bigger tires, and better trail capability with the 6 Inch Lift Kit | Ford Excursion (00-05) 4WD | Leaf Springs / NX2 Nitro Series. It raises the front 6 in. and the rear 5 in. Once installed, it makes room for tires up to 35 x 12.5 in.

This version is matched with NX2 Nitro Series shocks for damping tuned to the new height. Rear lift is handled by the leaf springs option.

Features

  • Lift height: 6 in. front (leaf spring), 5 in. rear
  • Glide-Ride multi-leaf springs use a triple-stage progressive design for a smooth ride loaded or empty
  • Heavy-duty rear lift blocks for added height without sacrificing load capacity
  • New U-bolts sized for the lifted rear
  • Track bar components keep the axle centered under the vehicle
  • Pitman arm correction keeps steering geometry in line
  • Includes NX2 Nitro Series shocks
  • Clearance for tires up to 35 x 12.5 in.

Specifications

Country of Origin (Primary)
US
Life Cycle Status Code
2
Drivetrain
4WD
Front Lift Height
6 in.
Front Lift Method
Leaf Spring
Max Tire Size
35 x 12.5 in.
Rear Lift Height
5 in.
Rear Lift Option
Leaf Springs
Shock Option
NX2 Nitro Series
Shocks Included
Yes
California Prop 65 Notice
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Color
Silver
Drive
4WD
Finish
Powdercoat
Kit Components
Includes two BDS003402, Ford F250/350 4in Front Spring, UPC Code 658848611348Includes two BDS003609, Ford F250/350 6in Rear Spring, UPC Code 658848611386Includes one BDS013009, Ford F250/350 6&8in Rear Box Kit, UPC Code 658848612987Includes one BDS0
Last Update
2026-10-20 16:11:18
Lift Height
6.0 Inch
Sold As
Kit
Universal
No
Vehicle Type
Truck/SUV
Warranty
Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts

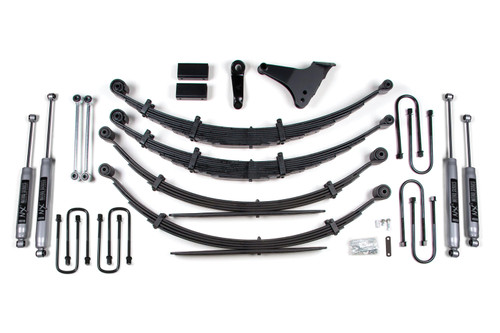

6 Inch Lift Kit | Ford Excursion (00-05) 4WD | Leaf Springs / NX2 Nitro Series

6 Inch Lift Kit | Ford Excursion (00-05) 4WD | Leaf Springs / NX2 Nitro Series

BDSBDS303H
