The 6 Inch Lift Kit | Ford F150 (2014) 4WD | 4 Inch Block Kit / NX2 Nitro Series is a complete suspension upgrade that raises your Ford F150 (2014) 4WD and makes room for larger rubber. It raises the front 6 in. and the rear 4 in. Once installed, it makes room for tires up to 37 x 12.5 in.

This version includes NX2 Nitro Series rear shocks. Rear lift is handled by the 4 in. block kit option.

Features

  • Lift height: 6 in. front (cross-member), 4 in. rear (block)
  • Heavy 1/4 in. laser-cut steel crossmembers that keep the underside clear
  • Front skid plate adds underbody protection and stiffens the front subframe
  • CNC-machined ductile iron knuckles restore proper steering geometry at the taller height
  • Front differential relocation brackets to protect CV joint angles
  • Includes NX2 Nitro Series shocks
  • Clearance for tires up to 37 x 12.5 in.

Specifications

Country of Origin (Primary)
US
Life Cycle Status Code
2
Drivetrain
4WD
Front Lift Height
6 in.
Front Lift Method
Cross-Member
Max Tire Size
37 x 12.5 in.
Rear Lift Height
4 in.
Rear Lift Method
Block
Rear Lift Option
4 in. Block Kit
Rear Shock Option
NX2 Nitro Series
Shocks Included
Yes
California Prop 65 Notice
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Color
Silver
Drive
4WD
Finish
Powdercoat
Kit Components

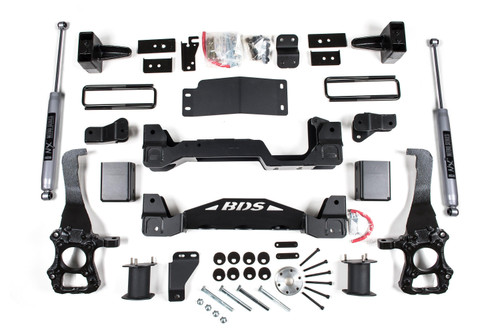

Includes one BDS013429, 09-15 F150 4 inch Rear Block Kit, UPC Code 658848613519Includes one BDS023605, 2014-15 F150 6in Spacer Box Kit, UPC Code 658848615780Includes one BDS023622, 2009-2014 Ford F150 Box Kit (3of4), UPC Code 658848615827Includes on
Last Update
2026-10-20 16:25:57
Lift Height
6.0 Inch
Sold As
Kit
Universal
No
Vehicle Type
Truck/SUV
Warranty
Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
