JK4 CT3 ShortArmLift

TeraFlex Alpine CT (Cross-Trail) Suspension Systems begin where our Sport S/T (Street/Trail) Suspension Systems end.

Designed to tackle Baja silt beds as well as the daily commute, the Alpine CT3 Suspension System is the no-compromise choice for the true weekend warrior with a do-it-all attitude. The 3 inch lift Alpine CT3 builds on the 3 inch lift Sport S/T3 by stepping up to a complete set of our bolt-on fully adjustable Alpine flexarms for full suspension adjustability both on and off-road.

Our fully adjustable Alpine flexarms have been engineered to allow tuning of the pinion and caster angles, anti-squat geometry, and tire position as well as optimize front and rear roll centers. Alpine flexarms feature dependable and maintenance-free bushings. The heavy-duty adjustable front track bar and rear track bar bracket eliminate side-to-side movement.

This adds up to full suspension articulation and flex off-road along with superior ride quality and performance on road as well as minimal brake dive and squat under acceleration to better put the power down on any surface. TeraFlex suspension systems provide reduced noise, vibration, and harshness (NVH) compared to other kits. The Alpine CT3 Suspension System is the best of both worlds!

Does Not include shocks. We recommend Falcon shock absorbers for superior performance. Falcon shocks and TeraFlex coil springs have been designed to work together to improve both compression and rebound for optimal vehicle stability.
Details:

• JKU 4-Door 3 Inch Alpine CT3 Suspension System - No Shocks
• The no-compromise choice for the true weekend warrior
• Full suspension articulation and flex off-road
• Superior ride quality and performance on road
• Sold As A Kit
• SKU: 1323000

Fits:

• 2007-2018 Jeep JKU Wrangler Unlimited (4-door)

Specs:

• Lift Height: 3 Inches
• Max Tire Diameter: 35 Inches

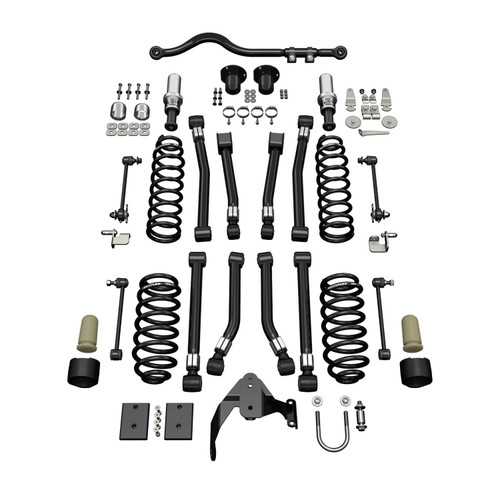

Includes:

• 3 inch lift coil springs
• Fully adjustable Alpine flexarms - Set of 8
• HD forged adjustable front track bar
• SpeedBump bump stops
• Front brake line anchor kit
• Front sway bar disconnects
• Rear track bar bracket
• Rear sway bar links
• Exhaust spacers
• All necessary hardware
• And more

Features and Benefits:

• Dependable performance w/ zero worries
• Positive, responsive handling w/ reduced noise, vibration, and harshness (NVH)
• Fully adjustable Alpine flexarms optimize correct caster and pinion angles for 2.5-4 inch lift kits
• High-quality, maintenance-free factory-style bushings provide excellent vibration damping and ride quality
• HD forged adjustable front track bar
• SpeedBump progressive bump stops provide progressive compression during high-speed suspension movement
• Full range of movement for off-road flex and articulation
• Install and drive simple bolt-on installation - no welding required
• TeraFlex Lifetime Warranty

Notes:

• This is a very heavy item and must be shipped by freight truck
• Requires aftermarket wheels w/ 4.5 inch backspacing or less - or Offset Wheel Adapters (P/N 1055000) for stock wheels
• Driveshaft modifications may be necessary with this suspension system. See the TeraFlex Rzeppa High Angle CV Kit (P/N 1744014)
• 2007-2011 JK/JKU models will require Extended Length Front Brake Lines (P/N 4353300)
• Requires cutting
• Alignment required
• Requires longer shocks (not included in base kit) - Falcon shock absorbers recommended
• Install Time: 11 Hours (including shocks)
