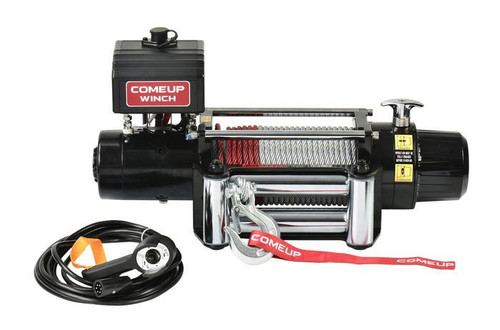

Fast, powerful, and high efficiency performance. Heavy-duty series-wound motor delivers superior torque output and faster line speed. Submersible sealed contactor with silver-alloy contact pads, thick copper buss bars and submersible construction ensures weather resistance. Patented Cone Brake Structure – “Brake outside the drum” – allows rapid heat dispersion. Tough Aluminum alloy housings. Industrial grade waterproof remote control comes with a thermometric LED indicator on the hand-held switch that automatically alerts when the motor is over-heated. Rugged and quiet 3-stage steel planetary gears for maximum mechanical efficiency. An ergonomic T-handle positively engages the free spool clutch through multiple evenly spaced locking holes for rapid rope payout. The entire clutch can be rotated to reposition the T-handle in multiple locations.
- Rated Line Pull: 9,000 lbs. single line
- Motor: 4.6 hp/ 3430 w 12V series wound
- Gear Ratio: 3-Stage Planetary 156:1
- Clutch (free-spooling): Rotating Ring Gear
- Brake (outside the drum): Automatic, full load CBS
- Drum Size: 2.5" x 9"
- Control: Wireless remote with thermometric indicator LED w/17' cord
- Rope Type: Galvanized aircraft A7 x 19
- Rope Size: 21/64” x 100' (8.3 mm x 30.5 m
- Mounting Bolt Pattern:10” x 4.5”
- Winch weight:72.8 lbs.
- Gross weight: 94.8lbs
- Color:
- Black|Red
- Line Type:
- Steel Cable
- Integrated Solenoid:
- No
- Application Type:
- Truck and SUV
- Load Rating (lbs.):
- 9000.0
