COMEUP's DV-12 light is the brand-new self-recovery winch specifically designed for off-roaders who have heavy loading requirements. Features such as compact size, lightweight, extreme low profile and spec-leading 12,000 lbs. pulling makes it the optimal winch to fit in the limited space for front-mounted installation on most of the current off-road vehicles. It comes with supreme power for safe and effective winching that enables you to Work Tough, Play Tough on the toughest jobs under extreme rugged environments. Fast, powerful, and high efficiency performance. Heavy-duty series-wound motor delivers superior torque output and faster line speed. Submersible sealed contactor with silver-alloy contact pads, thick copper buss bars and submersible construction ensures weather resistance. Patented Cone Brake Structure – “Brake outside the drum” – allows rapid heat dispersion. Tough Aluminum alloy housings. Industrial grade waterproof remote control comes with a thermometric LED indicator on the hand-held switch that automatically alerts when the motor is over-heated. Rugged and quiet 3-stage steel planetary gears for maximum mechanical efficiency. An ergonomic T-handle positively engages the free spool clutch through multiple evenly spaced locking holes for rapid rope payout. The entire clutch can be rotated to reposition the T-handle in multiple locations.
- Rated Line Pull: 12,000 lbs. single line
- Motor: 4.6 hp/ 3430 w 12V series wound
- Gear Ratio: 3-Stage Planetary 211:1
- Clutch (free-spooling): Rotating Ring Gear
- Brake (outside the drum): Automatic, full load CBS
- Winch construction: Aluminum Die cast housing with steel drum
- Drum Size: 2.5" x 9"
- Control: Waterproof remote with thermometric indicator LED w/17'
- Rope Type: Galvanized aircraft A7 x 19
- Rope Size:3/8"_x009d_ x 82'

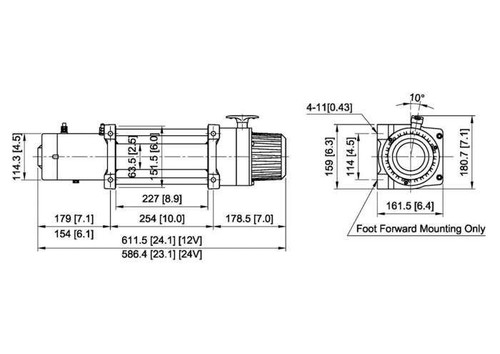

- Mounting Bolt Pattern:10” x 4.5”
- Winch weight:86 lbs.
- Gross weight: 108 lbs.
- Color:
- Gray|Red
- Integrated Solenoid:
- No
- Application Type:
- Truck and SUV
- Load Rating (lbs.):
- 12000.0
- Line Type:
- Steel Cable
