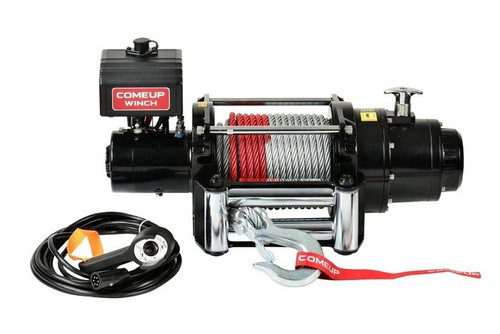

Fast, powerful, and high efficiency performance. Heavy-duty series-wound motor delivers superior torque output and faster line speed. Submersible sealed contactor with silver-alloy contact pads, thick copper buss bars and submersible construction ensures weather resistance. Patented Cone Brake Structure – “Brake outside the drum” – allows rapid heat dispersion. Tough Aluminum alloy housings. Industrial grade waterproof remote control comes with a thermometric LED indicator on the hand-held switch that automatically alerts when the motor is over-heated. Rugged and quiet 3-stage steel planetary gears for maximum mechanical efficiency. An ergonomic T-handle positively engages the free spool clutch through multiple evenly spaced locking holes for rapid rope payout. The entire clutch can be rotated to reposition the T-handle in multiple locations.
- Rated Line Pull: 12,000 lbs. single line
- Motor: 3.6 hp/ 2690 w 24V series wound
- Gear Ratio: 3-Stage Planetary 216:1
- Clutch (free-spooling): Rotating Ring Gear
- Brake (outside the drum): Automatic, full load CBS
- Winch construction: Aluminum Die cast housing with steel drum
- Drum Size: 3.5" x 8.1"
- Control: Waterproof remote with thermometric indicator LED w/17' (5 m) cord
- Rope: Galvanized aircraft A7 x 19
- Rope Size: 3/8” x 125' (9.5 mm x 38 m)
- Mounting Bolt Pattern:10” x 4.5” (254 x 114 mm), 10” x 6.5” (254 x 165 mm)
- Winch weight: 121 lbs.
- Gross weight: 147.7 lbs.
- Color:
- Black|Red
- Application Type:
- Truck and SUV
- Load Rating (lbs.):
- 12000.0
- Line Type:
- Steel Cable
- Integrated Solenoid:
- No
