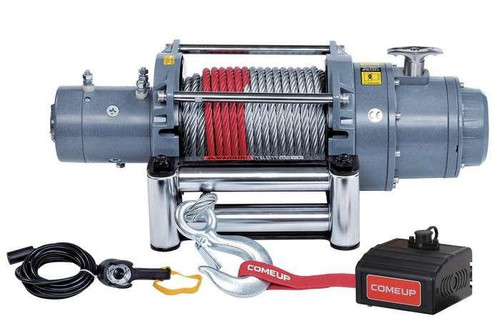

COMEUP Winch

DV-15 24V

Special Order Why?
MSRP: $1,490.00
$1,235.95
(You save $254.05)
Adding to cart… The item has been added
Shipping:
Free Shipping!
SKU:
CUP857436
UPC:
852300004154
Fast, powerful, and high efficiency performance. Heavy-duty series-wound motor delivers superior torque output and faster line speed. Submersible sealed contactor with silver-alloy contact pads, thick copper buss bars and submersible construction ensures weather resistance. Patented Cone Brake Structure – “Brake outside the drum” – allows rapid heat dispersion. Tough Aluminum alloy housings. Industrial grade waterproof remote control comes with a thermometric LED indicator on the hand-held switch that automatically alerts when the motor is over-heated. Rugged and quiet 3-stage steel planetary gears for maximum mechanical efficiency. An ergonomic T-handle positively engages the free spool clutch through multiple evenly spaced locking holes for rapid rope payout. The entire clutch can be rotated to reposition the T-handle in multiple locations.
  • Rated Line Pull: 15,000 lbs. single line
  • Motor: 3.6 hp/ 2690 w 24V series wound
  • Gear Ratio: 3-Stage Planetary 315:1
  • Clutch (free-spooling): Rotating Ring Gear
  • Brake (outside the drum): Automatic, full load CBS
  • Winch construction: Aluminum Die cast housing with steel drum
  • Drum Size: 3.5" x 8.1"
  • Control: Waterproof remote with thermometric indicator LED w/17' (5 m) cord
  • Rope: 6x129 IWRC
  • Rope Size: 7/16"” x89'
  • Mounting Bolt Pattern:10” x 4.5” (254 x 114 mm), 10” x 6.5” (254 x 165 mm)
  • Winch weight: 125.4
  • Gross weight: 152lbs
Color:
Gray|Red
