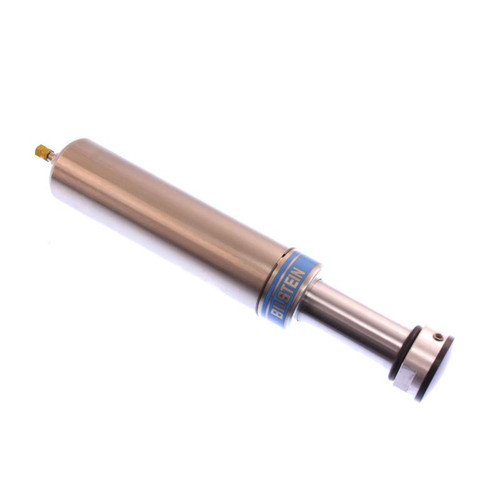

Bilstein M 9100 (Bump Stop) is designed to provide a significant increase in compression control over the last few inches of suspension travel on custom off-road applications. M 9100 (Bump Stop) is available in 3 different stroke lengths ranging from 2-4 inch travel that can accommodate a wide range of custom mount configurations. M 9100 (Bump Stop) has a replaceable strike pad for easy maintenance. This bump stop utilizes a nitrogen fill valve which can be used to fully adjust the compression force. When properly applied, M 9100 (Bump Stop) will effectively decelerate the suspension and prevent harsh bottoming on custom off-road applications.
- Body Design:
- Smooth Body (Non-Coilover)
- Compression @ 0.52 m/s:
- Custom
- Extended Length [in]:
- 12.47
- Extended Length [in] Rounded:
- 12
- Extended Length [mm]:
- 316.7
- Finish:
- Nickel Plated
- Internal Design:
- Monotube
- Lower Mount Type:
- Special
- LTL:
- N
- Mount Type:
- Special
- Optional Reservoir Clamp:
- N/A
- Rebound @ 0.52 m/s:
- Custom
- Reservoir:
- No
- Series:
- M 9100 (Bump Stop)
- Spring Seat Included:
- No
- Supplier Order ID:
- 24803
- Supplier Part Number:
- bilF4-BE5-G723-M0
- Title:
- Bilstein Shock Absorbers
- Upper Mount Type:
- Special
- Body Inner Diameter:
- 46mm
- Collapsed Length (in):
- 9.61
- Collapsed Length (mm):
- 244.1
