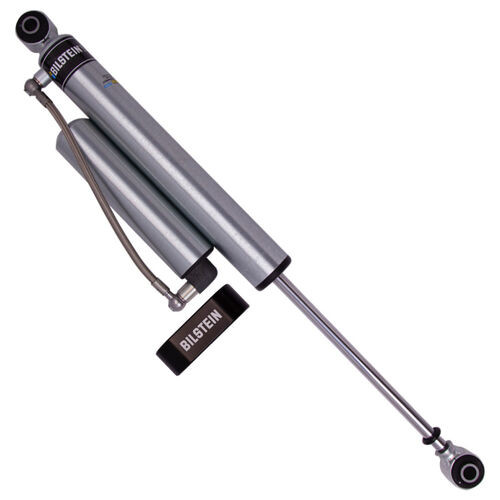

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.
- Adjustable Damping:
- Non-Adjustable
- Billet Reservoir Clamp Included:
- Yes
- Body Design:
- Smooth Body (Non-Coilover)
- Boot Included:
- No
- Extended Length [in]:
- 26.33
- Extended Length [mm]:
- 668.7
- Finish:
- Zinc Plated
- Internal Design:
- Monotube
- Lower Mount Type:
- Eye 14.4mm
- LTL:
- N
- Reservoir:
- Yes
- Series:
- B8 5160
- Spring Seat Included:
- No
- Supplier Order ID:
- 541826
- Supplier Part Number:
- bil25-311297
- Title:
- Bilstein Shock Absorbers
- Upper Mount Type:
- Eye 14.4mm
- Collapsed Length (in):
- 16.12
- Collapsed Length (mm):
- 409.5
- California Prop 65 Notice:
- WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Shaft Diameter:
- 14mm
- Country of Origin (Primary):
- US
- Emission Code:
- 4
- Harmonized Tariff Code (HTS):
- 8708801600
- Harmonized Tariff Code (Schedule B):
- 8708800050
- Life Cycle Status Code:
- 2
- National Popularity Code:
- N
- Part Number - Old:
- 25-176414; 25-242515
- Product Condition:
- NEW
- SDR Required Flag:
- Y
- SDS Sheet Number:
- USA SDS_Shock_Air Spring_V2_EN.pdf
- Taxable:
- Y
- Warranty Time:
- 24
- Warranty Time UOM:
- MO
