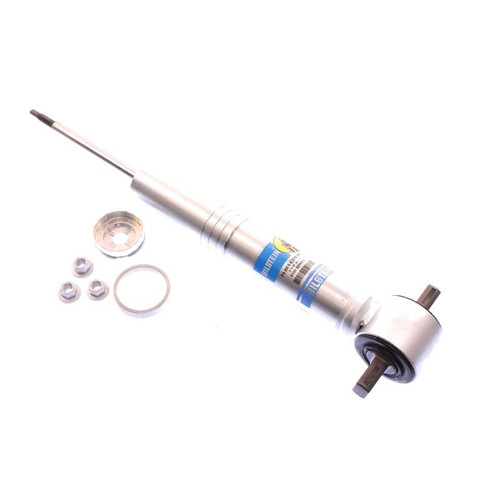

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
- Adjustable Damping:
- Non-Adjustable
- Body Design:
- Snap Ring Grooved Body (Coilover)
- Boot Included:
- No
- Extended Length [in]:
- 18.48
- Extended Length [mm]:
- 469.3
- Finish:
- Zinc Plated
- Internal Design:
- Monotube
- Lower Mount Type:
- Bar Pin
- LTL:
- N
- Reservoir:
- No
- Series:
- B8 5100 (Ride Height Adjustable)
- Spring Seat Included:
- No - Reuse OEM
- Supplier Order ID:
- 282744
- Supplier Part Number:
- bil24-186940
- Title:
- Bilstein Shock Absorbers
- Upper Mount Type:
- Stem
- Body Inner Diameter:
- 46mm
- Collapsed Length (in):
- 12.95
- Collapsed Length (mm):
- 329.0
