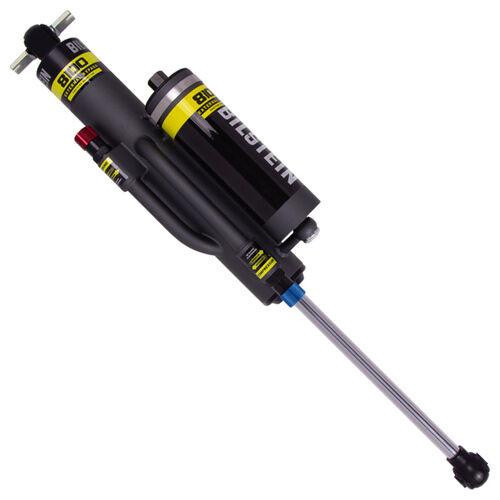

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.
- Adjustable Damping:
- Double Adjustable Compression and Rebound with Click Adjuster Knobs
- Collapsed Length (in):
- 17.17
- Boot Included:
- No
- Extended Length [mm]:
- 707.0
- Collapsed Length (mm):
- 436.0
- Lower Mount Type:
- Eye 12.1mm
- Finish:
- EVO Grey
- Series:
- B8 8100 (Bypass)
- LTL:
- N
- Supplier Part Number:
- bil25-291315
- Spring Seat Included:
- No
- Body Design:
- Bypass Body (Non-Coilover)
- Title:
- Bilstein Shock Absorbers
- California Prop 65 Notice:
- WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Extended Length [in]:
- 27.83
- Internal Design:
- Monotube
- Reservoir:
- Yes
- Supplier Order ID:
- 589089
- Upper Mount Type:
- Bar Pin
- Shaft Diameter:
- 18mm
