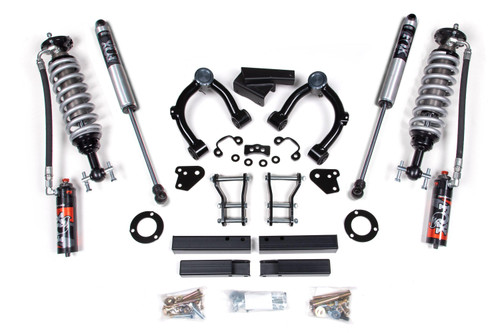

Built for strength performance and increased travel these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
- Front Lift Height:
- 3_5
- Front Lift Method:
- Coil Over
- Installation Difficulty:
- moderate
- Installation Time:
- 4 Hrs
- Installation Tools:
- 35mm Socket Axle Nut Socket-Air Hammer Rec-ballJointSeparationTool-bit unibit Step Drill Bit-cutOffTool
- Rear Lift Height:
- 1_5
- Rear Lift Method:
- Block
- Rear Shock Option:
- FOX 2 0 Performance Series
- Shocks Included:
- No
- Title:

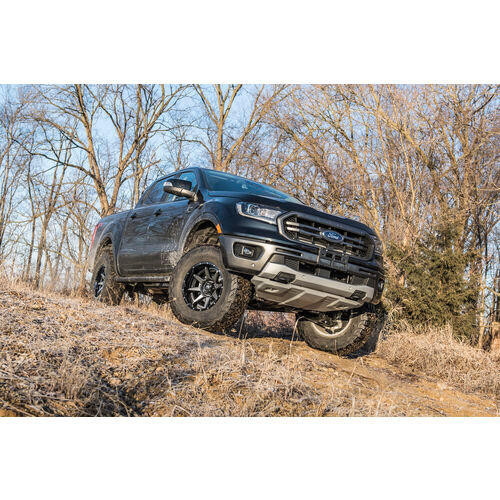

- 3.5 Inch Lift Kit - FOX 2.5 Coil-Over - Ford Ranger (19-23) 4WD
