Description

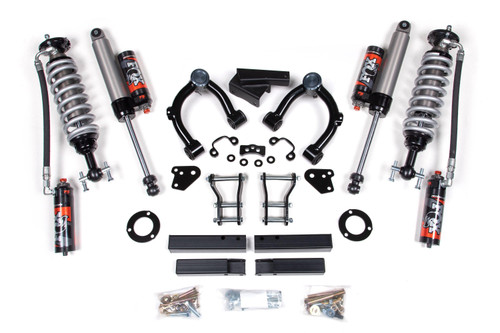

Built for drivers who want more clearance and a stronger stance, the 3.5 Inch Lift Kit | FOX 2.5 Coil-Over | Ford Ranger (19-23) 4WD | FOX 2.5 Performance Elite / Cast Steel transforms your Ford Ranger (2019-2023) 4WD. It raises the front 3.5 in. and the rear 1.5 in. Once installed, it makes room for tires up to 285/65.

This version includes FOX 2.5 Performance Elite rear shocks. It is configured for vehicles with Cast Steel OE knuckles.

Features

  • Lift height: 3.5 in. front (coil-over), 1.5 in. rear (block)
  • Front differential relocation brackets to protect CV joint angles
  • Upper control arms correct alignment and add strength over stock
  • Includes quality ball joints for long-term durability
  • Greaseable pivots make routine service simple
  • Top-mount strut spacers add front height on a bolt-on basis
  • Includes FOX 2.5 Performance Elite shocks
  • Clearance for tires up to 285/65

Specifications

Life Cycle Status Code
2
Drivetrain
4WD
Front Lift Height
3.5 in.
Front Lift Method
Coil-Over
Max Tire Size
285/65
OE Knuckle Type
Cast Steel
Rear Lift Height
1.5 in.
Rear Lift Method
Block
Rear Shock Option
FOX 2.5 Performance Elite
Shocks Included
Yes
California Prop 65 Notice
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Kit Components
Includes one BDS013354, 2020-2023 Ford Ranger Coilover 2.5 inch-3.5 inch Box kit - Steel OE Knuckle, UPC Code 711745611764Includes one BDS123614, 2019-2023 Ford Ranger Intrusion Beam Kit, UPC Code 711745604414Includes one FOX88306156, KIT: 19-ON For
Last Update
2026-10-20 16:26:52
Lift Height
3.5 Inch
Sold As
Kit
Universal
No
Vehicle Type
Truck/SUV
Warranty
Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
3.5 Inch Lift Kit | FOX 2.5 Coil-Over | Ford Ranger (19-23) 4WD | FOX 2.5 Performance Elite / Cast Steel

3.5 Inch Lift Kit | FOX 2.5 Coil-Over | Ford Ranger (19-23) 4WD | FOX 2.5 Performance Elite / Cast Steel

BDSBDS1910FPE
