Description

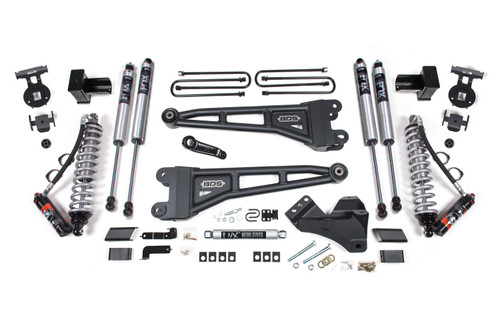

Built for drivers who want more clearance and a stronger stance, the 5 Inch Lift Kit w/ Radius Arm | FOX 2.5 Performance Elite Coilover | Ford F250/F350 Super Duty (23-26) 4WD | Diesel | Block Kit w/ Factory Overload / FOX 2.0 Performance Series transforms your Ford F250/F350 Super Duty (2023-2026) 4WD. It provides 5 in. of front lift. Once installed, it makes room for tires up to 37 x 12.5 in.

This version is matched with FOX 2.0 Performance Series shocks for damping tuned to the new height. Rear lift is handled by the block kit with factory overload option.

Features

  • Lift height: 5 in. front
  • Heavy-duty rear lift blocks for added height without sacrificing load capacity
  • New U-bolts sized for the lifted rear
  • Radius arms re-establish caster and axle position at the new height
  • Track bar components keep the axle centered under the vehicle
  • Pitman arm correction keeps steering geometry in line
  • Sway bar relocation brackets restore proper bar geometry
  • Includes FOX 2.0 Performance Series shocks

Specifications

Life Cycle Status Code
2
Drivetrain
4WD
Engine Type
Diesel
Front Lift Height
5 in.
Max Tire Size
37 x 12.5 in.
Rear Lift Option
Block Kit With Factory Overload
Shock Option
FOX 2.0 Performance Series
Shocks Included
Yes
California Prop 65 Notice
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Drive
4WD
Fuel Type
Diesel
Kit Components
Includes one BDS013414, 2017-2024 Super Duty 4 inch Front Box Kit, UPC Code 658848613458Includes one BDS013516, 2017-2024 F250 5 inch Rear Block Kit -3 Leaf Main, UPC Code 658848613595Includes one BDS123263, 2023-2024 Ford F250/350 4wd Radius Arm Ki
Last Update
2026-08-31 10:11:36
Lift Height
5.0 Inch
Sold As
Kit
Universal
No
Vehicle Type
Truck/SUV
Warranty
Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
5 Inch Lift Kit w/ Radius Arm | FOX 2.5 Performance Elite Coilover | Ford F250/F350 Super Duty (23-26) 4WD | Diesel | Block Kit w/ Factory Overload / FOX 2.0 Performance Series

5 Inch Lift Kit w/ Radius Arm | FOX 2.5 Performance Elite Coilover | Ford F250/F350 Super Duty (23-26) 4WD | Diesel | Block Kit w/ Factory Overload / FOX 2.0 Performance Series

BDSBDS2203FPE
