Description

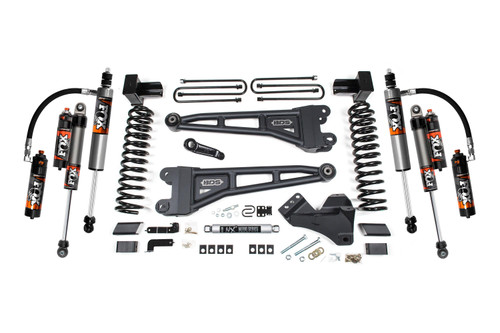

The 5 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (23-26) 4WD | Diesel | 5 Inch Block Kit w/ Overload / FOX 2.5 Performance Elite is a complete suspension upgrade that raises your Ford F250/F350 Super Duty (2023-2026) 4WD and makes room for larger rubber. It adds 5 in. of lift at both ends. Once installed, it makes room for tires up to 37 x 12.5 in.
This version is matched with FOX 2.5 Performance Elite shocks for damping tuned to the new height. Rear lift is handled by the 5 in. block kit with overload option.
Features
- Lift height: 5 in. front (coil spring), 5 in. rear
- BDS progressive-rate coil springs deliver the lift with a smooth, predictable ride
- Heavy-duty rear lift blocks for added height without sacrificing load capacity
- New U-bolts sized for the lifted rear
- Radius arms re-establish caster and axle position at the new height
- Track bar components keep the axle centered under the vehicle
- Includes FOX 2.5 Performance Elite shocks
- Clearance for tires up to 37 x 12.5 in.
Specifications
- Life Cycle Status Code
- 2
- Drivetrain
- 4WD
- Engine Type
- Diesel
- Front Lift Height
- 5 in.
- Front Lift Method
- Coil Spring
- Max Tire Size
- 37 x 12.5 in.
- Rear Lift Height
- 5 in.
- Rear Lift Option
- 5 in. Block Kit With Overload
- Shock Option
- FOX 2.5 Performance Elite
- Shocks Included
- Yes
- Brand Logo
- Resources & Documents
- California Prop 65 Notice
- WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Drive
- 4WD
- Fuel Type
- Diesel
- Kit Components
- Includes one BDS013414, 2017-2024 Super Duty 4 inch Front Box Kit, UPC Code 658848613458Includes one BDS013516, 2017-2024 F250 5 inch Rear Block Kit -3 Leaf Main, UPC Code 658848613595Includes one BDS033411, 2005-2024 Ford F250/F350 Superduty 4 inch
- Last Update
- 2026-08-31 10:11:23
- Lift Height
- 5.0 Inch
- Sold As
- Kit
- Universal
- No
- Vehicle Type
- Truck/SUV
- Warranty
- Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
