Description

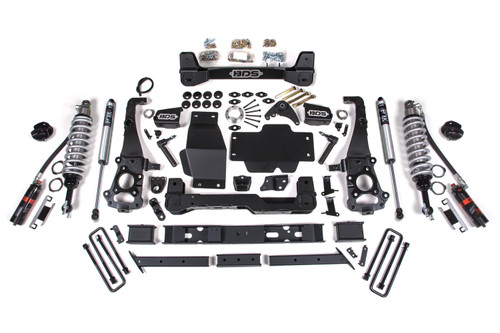

Built for drivers who want more clearance and a stronger stance, the 6 Inch Lift Kit | FOX 2.5 Coil-Over | Ford Ranger (19-23) 4WD | Cast Aluminum transforms your Ford Ranger (2019-2023) 4WD. It raises the front 6 in. and the rear 3-5 in. Once installed, it makes room for tires up to 33 x 12.5 in.

It is configured for vehicles with Cast Aluminum OE knuckles.

Features

  • Lift height: 6 in. front (coil-over), 3-5 in. rear (block)
  • Tall-arch 1/4 in. steel crossmembers built for clearance and strength
  • Front skid plate adds underbody protection and stiffens the front subframe
  • CNC-machined ductile iron knuckles restore proper steering geometry at the taller height
  • Front differential relocation brackets to protect CV joint angles
  • Clearance for tires up to 33 x 12.5 in.

Specifications

Life Cycle Status Code
2
Drivetrain
4WD
Front Lift Height
6 in.
Front Lift Method
Coil-Over
Max Tire Size
33 x 12.5 in.
OE Knuckle Type
Cast Aluminum
Rear Lift Height
3-5 in.
Rear Lift Method
Block
California Prop 65 Notice
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Drive
4WD
Kit Components
Includes one BDS023660, 2019-2023 Ford Ranger Knuckle Box Kit - Driver Side, UPC Code 658848615995Includes one BDS023661, 2019-2023 Ford Ranger Knuckle Box Kit - Passenger Side, UPC Code 658848616008Includes one BDS023662, 2019-2023 Ford Ranger Fron
Last Update
2026-10-20 16:59:20
Lift Height
6.0 Inch
Sold As
Kit
Universal
No
Vehicle Type
Truck/SUV
Warranty
Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
