Description

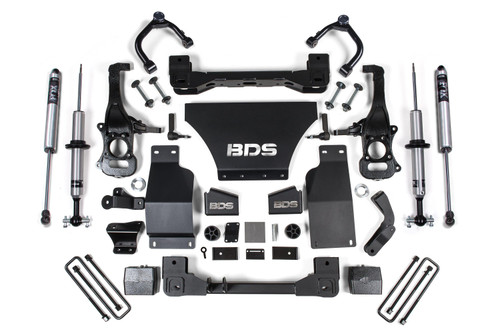

The 6 Inch Lift Kit | Chevy Silverado or GMC Sierra 1500 (19-26) 4WD | Gas | FOX 2.0 Performance Series / FOX 2.0 Performance Series is a complete suspension upgrade that raises your Chevy Silverado or GMC Sierra 1500 (2019-2026) 4WD and makes room for larger rubber. It raises the front 6 in. and the rear 5 in. Once installed, it makes room for tires up to 35 x 12.5 in.
This version includes FOX 2.0 Performance Series rear shocks. Front shock option: FOX 2.0 Performance Series.
Features
- Lift height: 6 in. front (cross-member), 5 in. rear (block)
- Tall-arch 1/4 in. steel crossmembers built for clearance and strength
- Bolt-together skid plate system shields key components off-road
- CNC-machined ductile iron knuckles restore proper steering geometry at the taller height
- Front differential relocation brackets to protect CV joint angles
- Includes FOX 2.0 Performance Series shocks
- Clearance for tires up to 35 x 12.5 in.
Specifications
- Life Cycle Status Code
- 2
- Drivetrain
- 4WD
- Engine Type
- Gas
- Front Lift Height
- 6 in.
- Front Lift Method
- Cross-Member
- Front Shock Option
- FOX 2.0 Performance Series
- Max Tire Size
- 35 x 12.5 in.
- Rear Lift Height
- 5 in.
- Rear Lift Method
- Block
- Rear Shock Option
- FOX 2.0 Performance Series
- Shocks Included
- Yes
- Brand Logo
- Resources & Documents
- California Prop 65 Notice
- WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Color
- Clear
- Drive
- 4WD
- Finish
- Anodized
- Fuel Type
- Gas
- Kit Components
- Includes one BDS011518, 2019-2024 Chevy/GMC 1500 5 inch Rear Box Kit, UPC Code 658848611935Includes one BDS021664, 2019-2024 Chevy/GMC 1500 Knuckle Box 1of2 w/UCA (4 inch and 6 inch Compatible), UPC Code 658848615056Includes one BDS021665, 2019-2024
- Last Update
- 2026-10-20 16:35:54
- Lift Height
- 6.0 Inch
- Sold As
- Kit
- Universal
- No
- Vehicle Type
- Truck/SUV
- Warranty
- Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
