Description

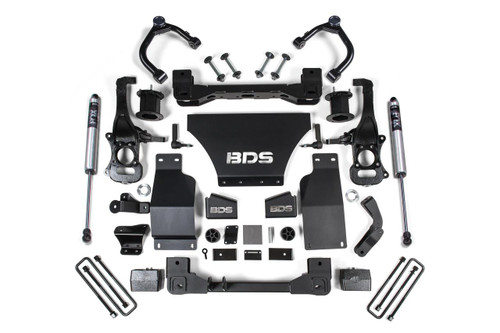

Built for drivers who want more clearance and a stronger stance, the 4 Inch Lift Kit | Chevy Silverado or GMC Sierra 1500 (19-24) 4WD | Gas | FOX 2.0 Performance Series / Strut Spacer transforms your Chevy Silverado or GMC Sierra 1500 (2019-2024) 4WD. It raises the front 4 in. and the rear 2 in. Once installed, it makes room for tires up to 33 x 12.5 in.
This version includes FOX 2.0 Performance Series rear shocks. Front shock option: Strut Spacer.
Features
- Lift height: 4 in. front (cross-member), 2 in. rear (block)
- Heavy 1/4 in. laser-cut steel crossmembers that keep the underside clear
- Front skid plate adds underbody protection and stiffens the front subframe
- CNC-machined ductile iron knuckles restore proper steering geometry at the taller height
- Differential drop brackets help keep CV and driveline angles in check
- Includes FOX 2.0 Performance Series shocks
- Clearance for tires up to 33 x 12.5 in.
Specifications
- Life Cycle Status Code
- 2
- Drivetrain
- 4WD
- Engine Type
- Gas
- Front Lift Height
- 4 in.
- Front Lift Method
- Cross-Member
- Front Shock Option
- Strut Spacer
- Max Tire Size
- 33 x 12.5 in.
- Rear Lift Height
- 2 in.
- Rear Lift Method
- Block
- Rear Shock Option
- FOX 2.0 Performance Series
- Shocks Included
- Yes
- Brand Logo
- Resources & Documents
- California Prop 65 Notice
- WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Color
- Clear
- Drive
- 4WD
- Finish
- Anodized
- Fuel Type
- Gas
- Kit Components
- Includes one BDS011316, 2019-2024 Chevy/GMC 1500 4 inch Rear Box Kit, UPC Code 658848611737Includes one BDS021405, 2019-2024 Chevy/GMC 4 inch Strut Spacer Box, UPC Code 658848614639Includes one BDS021664, 2019-2024 Chevy/GMC 1500 Knuckle Box 1of2 w/
- Last Update
- 2026-10-20 16:35:54
- Lift Height
- 4.0 Inch
- Sold As
- Kit
- Universal
- No
- Vehicle Type
- Truck/SUV
- Warranty
- Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
