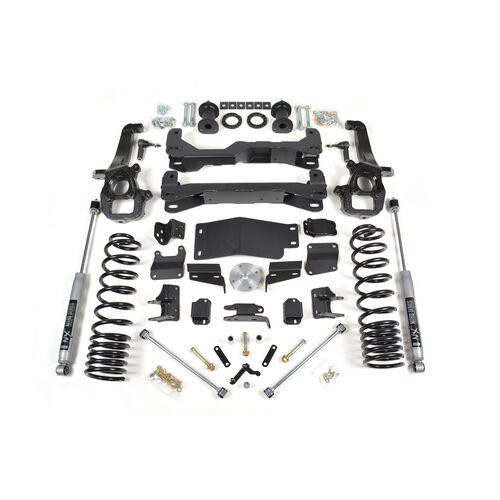

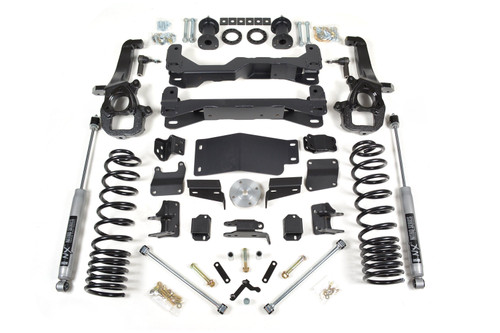

Built for drivers who want more clearance and a stronger stance, the 6 Inch Lift Kit | Ram 1500 (19-24) 4WD | NX2 Nitro Series / Large Bore transforms your Ram 1500 (2019-2024) 4WD. It raises the front 6 in. and the rear 5 in. Once installed, it makes room for tires up to 37 x 12.5 in.
This version includes NX2 Nitro Series rear shocks. It is configured for vehicles with Large Bore OE knuckles.
Features
- Lift height: 6 in. front (cross-member), 5 in. rear (coil spring)
- Heavy 1/4 in. laser-cut steel crossmembers that keep the underside clear
- Bolt-together skid plate system shields key components off-road
- CNC-machined ductile iron knuckles restore proper steering geometry at the taller height
- Differential drop brackets help keep CV and driveline angles in check
- Includes NX2 Nitro Series shocks
- Clearance for tires up to 37 x 12.5 in.
- Life Cycle Status Code:
- 2
- Drivetrain:
- 4WD
- Front Lift Height:
- 6 in.
- Front Lift Method:
- Cross-Member
- Max Tire Size:
- 37 x 12.5 in.
- OE Knuckle Type:
- Large Bore
- Rear Lift Height:
- 5 in.
- Rear Lift Method:
- Coil Spring
- Rear Shock Option:
- NX2 Nitro Series
- Shocks Included:
- Yes
