Description

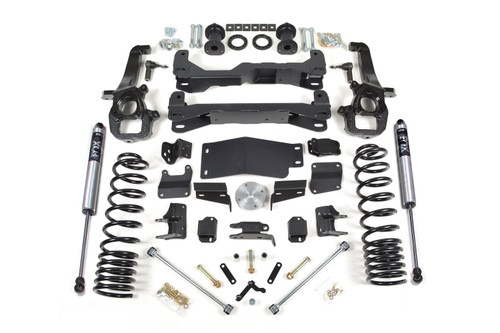

Built for drivers who want more clearance and a stronger stance, the 6 Inch Lift Kit | Ram 1500 (19-24) 4WD | FOX 2.0 Performance Series / Large Bore transforms your Ram 1500 (2019-2024) 4WD. It raises the front 6 in. and the rear 5 in. Once installed, it makes room for tires up to 37 x 12.5 in.
This version includes FOX 2.0 Performance Series rear shocks. It is configured for vehicles with Large Bore OE knuckles.
Features
- Lift height: 6 in. front (cross-member), 5 in. rear (coil spring)
- Heavy 1/4 in. laser-cut steel crossmembers that keep the underside clear
- Bolt-together skid plate system shields key components off-road
- CNC-machined ductile iron knuckles restore proper steering geometry at the taller height
- Differential drop brackets help keep CV and driveline angles in check
- Includes FOX 2.0 Performance Series shocks
- Clearance for tires up to 37 x 12.5 in.
Specifications
- Life Cycle Status Code
- 2
- Drivetrain
- 4WD
- Front Lift Height
- 6 in.
- Front Lift Method
- Cross-Member
- Max Tire Size
- 37 x 12.5 in.
- OE Knuckle Type
- Large Bore
- Rear Lift Height
- 5 in.
- Rear Lift Method
- Coil Spring
- Rear Shock Option
- FOX 2.0 Performance Series
- Shocks Included
- Yes
