Description

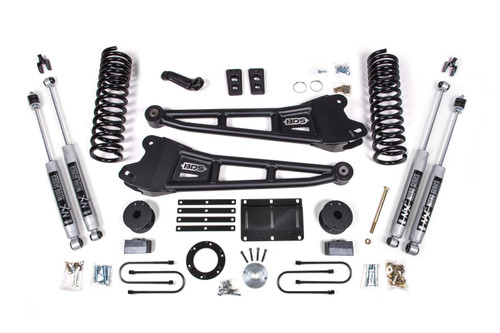

Give your Ram 3500 w/ Rear Air Ride (2013-2018) 4WD more height, room for bigger tires, and better trail capability with the 6 Inch Lift Kit w/ Radius Arm | Ram 3500 w/ Rear Air Ride (13-18) 4WD | Diesel | NX2 Nitro Series. It raises the front 6 in. and the rear 5 in. Once installed, it makes room for tires up to 37 x 13.5 in.
This version is matched with NX2 Nitro Series shocks for damping tuned to the new height.
Features
- Lift height: 6 in. front (coil spring), 5 in. rear (block)
- BDS progressive-rate coil springs deliver the lift with a smooth, predictable ride
- Heavy-duty rear lift blocks for added height without sacrificing load capacity
- New U-bolts sized for the lifted rear
- Radius arms re-establish caster and axle position at the new height
- Track bar components keep the axle centered under the vehicle
- Includes NX2 Nitro Series shocks
- Clearance for tires up to 37 x 13.5 in.
Specifications
- Life Cycle Status Code
- 2
- Drivetrain
- 4WD
- Engine Type
- Diesel
- Front Lift Height
- 6 in.
- Front Lift Method
- Coil Spring
- Max Tire Size
- 37 x 13.5 in.
- Rear Lift Height
- 5 in.
- Rear Lift Method
- Block
- Shock Option
- NX2 Nitro Series
- Shocks Included
- Yes
- Brand Logo
- Resources & Documents
- California Prop 65 Notice
- WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Color
- Silver
- Finish
- Powdercoat
- Fuel Type
- Diesel
- Kit Components
- Includes one BDS012615, 2013-2018 Ram 2500/3500 4wd 6 inch Radius Arm Front Box Kit, UPC Code 711745611719Includes one BDS012618, 2013-2018 Ram 3500 Auto Level Air Suspension 6 inch Rear, UPC Code 658848612789Includes one BDS032602, 2013-2024 Ram 35
- Last Update
- 2026-10-20 16:16:37
- Lift Height
- 6.0 Inch
- Sold As
- Kit
- Universal
- No
- Vehicle Type
- Truck/SUV
- Warranty
- Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
