Description

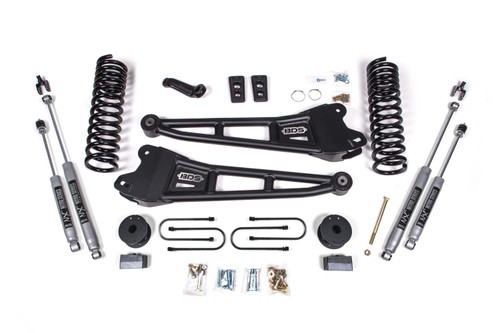

The 4 Inch Lift Kit w/ Radius Arm | Ram 3500 w/ Rear Air Ride (13-18) 4WD | Gas | NX2 Nitro Series is a complete suspension upgrade that raises your Ram 3500 w/ Rear Air Ride (2013-2018) 4WD and makes room for larger rubber. It raises the front 4 in. and the rear 3 in. Once installed, it makes room for tires up to 37 x 12.5 in.
This version is matched with NX2 Nitro Series shocks for damping tuned to the new height.
Features
- Lift height: 4 in. front (coil spring), 3 in. rear (block)
- BDS progressive-rate coil springs deliver the lift with a smooth, predictable ride
- Fabricated steel lift blocks raise and level the rear
- New U-bolts sized for the lifted rear
- Radius arms re-establish caster and axle position at the new height
- Track bar components keep the axle centered under the vehicle
- Includes NX2 Nitro Series shocks
- Clearance for tires up to 37 x 12.5 in.
Specifications
- Life Cycle Status Code
- 2
- Drivetrain
- 4WD
- Engine Type
- Gas
- Front Lift Height
- 4 in.
- Front Lift Method
- Coil Spring
- Max Tire Size
- 37 x 12.5 in.
- Rear Lift Height
- 3 in.
- Rear Lift Method
- Block
- Shock Option
- NX2 Nitro Series
- Shocks Included
- Yes
- Brand Logo
- Resources & Documents
- California Prop 65 Notice
- WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Color
- Silver
- Finish
- Powdercoat
- Fuel Type
- Gas
- Kit Components
- Includes one BDS012318, Ram 3500 Auto Level Air Suspension 3 inch Rear, UPC Code 711745611467Includes one BDS012432, 2014-2018 Ram 2500 4wd 4 inch Radius Arm Front Box Kit, UPC Code 711745611702Includes one BDS032302, 2013-2024 Ram 3500 / 2014-2024
- Last Update
- 2026-10-20 16:36:47
- Lift Height
- 4.0 Inch
- Sold As
- Kit
- Universal
- No
- Vehicle Type
- Truck/SUV
- Warranty
- Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
