Description

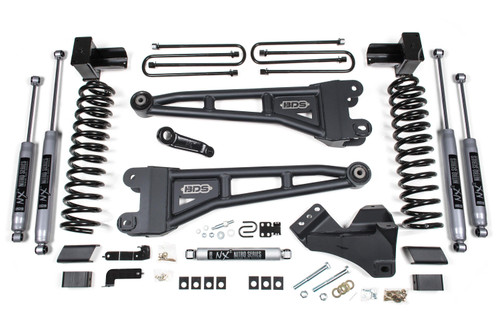

Give your Ford F250/F350 Super Duty (2017-2019) 4WD more height, room for bigger tires, and better trail capability with the 4 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (17-19) 4WD | Gas | 5 Inch Block w/ 2 and 3 Leaf Main / NX2 Nitro Series. It raises the front 4 in. and the rear 5 in. Once installed, it makes room for tires up to 37 x 12.5 in.
This version is matched with NX2 Nitro Series shocks for damping tuned to the new height. Rear lift is handled by the 5 in. block with 2 and 3 leaf main option.
Features
- Lift height: 4 in. front (coil spring), 5 in. rear
- BDS progressive-rate coil springs deliver the lift with a smooth, predictable ride
- Fabricated steel lift blocks raise and level the rear
- New U-bolts sized for the lifted rear
- Radius arms re-establish caster and axle position at the new height
- Track bar components keep the axle centered under the vehicle
- Includes NX2 Nitro Series shocks
- Clearance for tires up to 37 x 12.5 in.
Specifications
- Country of Origin (Primary)
- US
- Life Cycle Status Code
- 2
- Drivetrain
- 4WD
- Engine Type
- Gas
- Front Lift Height
- 4 in.
- Front Lift Method
- Coil Spring
- Max Tire Size
- 37 x 12.5 in.
- Rear Lift Height
- 5 in.
- Rear Lift Option
- 5 in. Block With 2 and 3 Leaf Main
- Shock Option
- NX2 Nitro Series
- Shocks Included
- Yes
- Brand Logo
- Resources & Documents
- California Prop 65 Notice
- WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Color
- Silver
- Drive
- 4WD
- Finish
- Powdercoat
- Fuel Type
- Gas
- Kit Components
- Includes one BDS013414, 2017-2024 Super Duty 4 inch Front Box Kit, UPC Code 658848613458Includes one BDS013516, 2017-2024 F250 5 inch Rear Block Kit -3 Leaf Main, UPC Code 658848613595Includes one BDS033412, 2005-2024 Ford F250/F350 Gas 4 inch Coil
- Last Update
- 2026-10-20 17:01:13
- Lift Height
- 4.0 Inch
- Sold As
- Kit
- Universal
- No
- Vehicle Type
- Truck/SUV
- Warranty
- Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
