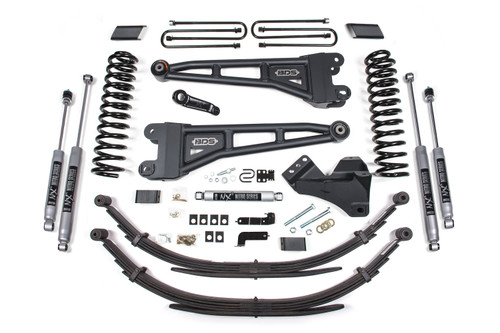

Built for drivers who want more clearance and a stronger stance, the 4 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (17-19) 4WD | Gas | Leaf Springs / NX2 Nitro Series transforms your Ford F250/F350 Super Duty (2017-2019) 4WD. It raises the front 4 in. and the rear 5 in. Once installed, it makes room for tires up to 37 x 12.5 in.
This version is matched with NX2 Nitro Series shocks for damping tuned to the new height. Rear lift is handled by the leaf springs option.
Features
- Lift height: 4 in. front (coil spring), 5 in. rear
- BDS progressive-rate coil springs deliver the lift with a smooth, predictable ride
- Fabricated steel lift blocks raise and level the rear
- New U-bolts sized for the lifted rear
- Radius arms re-establish caster and axle position at the new height
- Track bar components keep the axle centered under the vehicle
- Includes NX2 Nitro Series shocks
- Clearance for tires up to 37 x 12.5 in.
- Country of Origin (Primary):
- US
- Life Cycle Status Code:
- 2
- Drivetrain:
- 4WD
- Engine Type:
- Gas
- Front Lift Height:
- 4 in.
- Front Lift Method:
- Coil Spring
- Max Tire Size:
- 37 x 12.5 in.
- Rear Lift Height:
- 5 in.
- Rear Lift Option:
- Leaf Springs
- Shock Option:
- NX2 Nitro Series
- Shocks Included:
- Yes
