Description

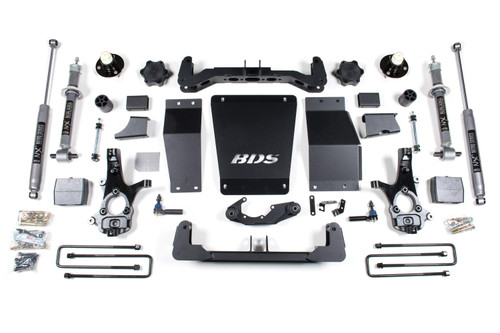

The 6 Inch Lift Kit | BDS Strut | Chevy Silverado or GMC Sierra 1500 (14-18) 4WD | Block Kit / NX2 Nitro Series / Aluminum / Stamped Steel is a complete suspension upgrade that raises your Chevy Silverado or GMC Sierra 1500 (2014-2018) 4WD and makes room for larger rubber. It raises the front 6 in. and the rear 5 in. Once installed, it makes room for tires up to 33 x 12.5 in.
This version includes NX2 Nitro Series rear shocks. Rear lift is handled by the block kit option. It is configured for trucks with Aluminum / Stamped Steel factory control arms.
Features
- Lift height: 6 in. front (cross-member), 5 in. rear
- Heavy 1/4 in. laser-cut steel crossmembers that keep the underside clear
- Front skid plate adds underbody protection and stiffens the front subframe
- CNC-machined ductile iron knuckles restore proper steering geometry at the taller height
- Front differential relocation brackets to protect CV joint angles
- Includes NX2 Nitro Series shocks
- Clearance for tires up to 33 x 12.5 in.
Specifications
- Country of Origin (Primary)
- US
- Life Cycle Status Code
- 2
- Drivetrain
- 4WD
- Factory Control Arm Type
- Aluminum / Stamped Steel
- Front Lift Height
- 6 in.
- Front Lift Method
- Cross-Member
- Max Tire Size
- 33 x 12.5 in.
- Rear Lift Height
- 5 in.
- Rear Lift Option
- Block Kit
- Rear Shock Option
- NX2 Nitro Series
- Shocks Included
- Yes
