Description

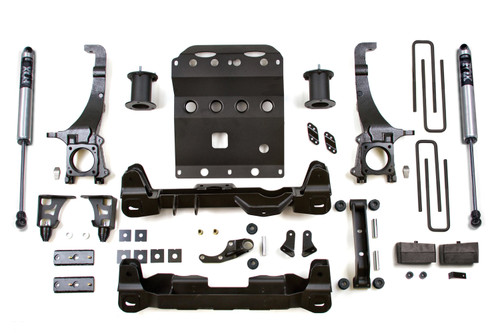

The 4 Inch Lift Kit | Toyota Tacoma (05-15) 4WD | FOX 2.0 Performance Series is a complete suspension upgrade that raises your Toyota Tacoma (2005-2015) 4WD and makes room for larger rubber. It raises the front 4 in. and the rear 3 in. Once installed, it makes room for tires up to 33 x 12.5 in.
This version includes FOX 2.0 Performance Series rear shocks.
Features
- Lift height: 4 in. front (cross-member), 3 in. rear (block)
- Heavy 1/4 in. laser-cut steel crossmembers that keep the underside clear
- Front skid plate adds underbody protection and stiffens the front subframe
- Replacement steering knuckles keep steering angles correct after the lift
- Front differential relocation brackets to protect CV joint angles
- Heavy-duty rear lift blocks for added height without sacrificing load capacity
- Includes FOX 2.0 Performance Series shocks
- Clearance for tires up to 33 x 12.5 in.
Specifications
- Country of Origin (Primary)
- US
- Life Cycle Status Code
- 2
- Drivetrain
- 4WD
- Front Lift Height
- 4 in.
- Front Lift Method
- Cross-Member
- Max Tire Size
- 33 x 12.5 in.
- Rear Lift Height
- 3 in.
- Rear Lift Method
- Block
- Rear Shock Option
- FOX 2.0 Performance Series
- Shocks Included
- Yes
- Brand Logo
- Resources & Documents
- California Prop 65 Notice
- WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Color
- Clear
- Drive
- 4WD
- Finish
- Anodized
- Kit Components
- Includes one BDS018318, 2005-2023 Tacoma 3 inch Rear Block Kit, UPC Code 658848614455Includes one BDS028403, 2005-2023 Tacoma 4 inch Front Box Kit 4 of 4, UPC Code 658848616176Includes one BDS028600, 2005-2023 Toyota Tacoma Front Box Kit 1 of 4, UPC
- Last Update
- 2026-10-20 15:38:26
- Lift Height
- 4.0 Inch
- Sold As
- Kit
- Universal
- No
- Vehicle Type
- Truck/SUV
- Warranty
- Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
