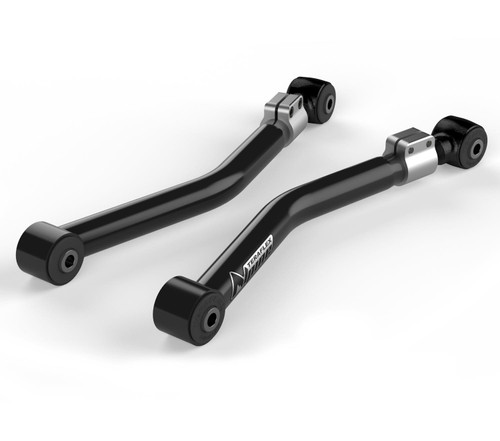

TeraFlex JK/JKU Alpine Long Flexarm adjustable control arms and Alpine Long Flexarm Brackets (not included - P/N 1957000) provides maintenance-free performance with complete alignment adjustability for JK Wrangler and JKU Wrangler Unlimited models with 3-6 inch lifts.
Fully-adjustable Alpine Long Flexarm adjustable control arms optimize correct caster and pinion angles for a proper alignment as well as re-center the axles in the wheel well to maintain the factory wheelbase for proper suspension movement. Can be added to an existing suspension lift.
Fits:
- JK Wrangler (2-door)
- JKU Wrangler Unlimited (4-door)
- Lift Height: 3-6 inch
Flexarm Specs:
- Tube Diameter and Wall: 1.625 inch x 0.157 inch (42mm x 4mm)
- Factory Length: 17.4375 inch
- Min. Length: 20 inch
- Max. Length: 21.5 inch
- Both Ends: 9/16 inch (14mm) Bolt
- Thread: 1.25 inch-12 UNF
- Both Bushings: P/N 611012
Includes:
- Alpine Long Flexarm - Driver Side Rear Upper Adjustable Control Arm (P/N 1131561)
- Alpine Long Flexarm - Passenger Side Rear Upper Adjustable Control Arm (P/N 1131571)
- Sold As A Kit
Features and Benefits:
- Durable 1.625 inch x 0.157 inch (42mm x 4mm) wall DOM (Drawn Over Mandrel) tube provides maximum strength (upper long control arms)
- Durable 2 inch x 0.197 inch (50mm x 5mm) wall DOM tube provides maximum strength (lower long control arms)
- Fully-adjustable Alpine Long Flexarm control arms optimize pinion and caster angles, and tune anti-squat geometry for proper suspension alignment
- Re-centers axles in the wheel well for proper suspension movement or can be used to increase wheelbase
- Full-range of movement will not restrict articulation or flex off-road
- High-quality factory style bushings provide excellent noise, vibration, and harshness (NVH) damping and ride quality characteristics w/ zero maintenance
- Zero maintenance forged threaded joints for smooth quiet flex
- Premium black e-dipped coating provides superior durability and corrosion resistance on tube and forged rod end housing
- Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment
- TeraFlex Lifetime Warranty against defects
Notes:
- Cutting and welding required
- Removal of factory control arm bracketry is required
- TeraFlex Alpine Long Flexarm adjustable control arms must be used in conjunction w/ TeraFlex Alpine Long Flexarm Bracket Kit (not included - P/N 1957000)
- Alpine Long Flexarm - Driver Side Rear Upper Adjustable Control Arm (P/N 1131561) available separately
- Alpine Long Flexarm - Passenger Side Rear Upper Adjustable Control Arm (P/N 1131571) available separately
- Replacement Bushing - both ends (P/N 611012) available separately
- Install Time: 2 Hours
- SKU: 1315560
- doors:
- 4 Door|2 Door
- Included Parts:
- Driver Rear Upper (# 1131561)
- location:
- Rear Upper
- position:
- Driver/Passenger
- Title:
- JK: Alpine Long Control Arm Kit - Rear Upper (3-6" Lift)
- universal:
- No
- warranty:
- Lifetime Warranty On Defects
- Brand Logo:
- https://www.asapnetwork.org/sites/default/files/brands/icons/icon_1.jpg
- Color:
- Black
- Finish:
- E-dipped
- Installation Time:
- 2 Hours
- Last Update:
- 2022-07-08 09:25:31
- Lift Height:
- 3-6 Inch
- Material:
- Steel
- Sold As:
- Kit
- Vehicle Type:
- Jeep
- California Prop 65 Notice:
- CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- promotion_text:
- Get a free Outask Light when you spend $1,000 or more on select brands! Go to our promotions and rebate page for more information!
- Ball Joint Included:
- No
- Fitment:
- Direct Fitment
- Installation Difficulty:
- Difficult Requires Professional Installation
