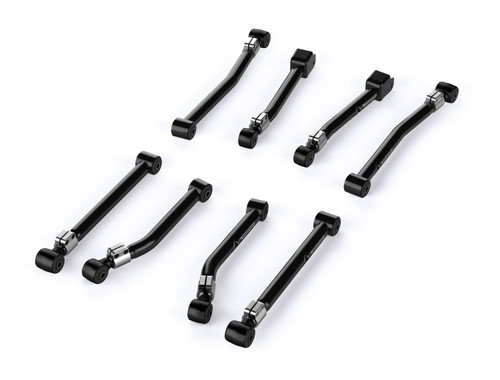

07-18 Wrangler JK Alpine Short Arm Kit 8-Arm 2-4 Inch Lift TeraFlex 1415610

TeraFlex JK/JKU Alpine Flexarm adjustable control arms provide maximum adjustability, dependability, and performance while retaining factory control arm mounting locations on JK Wrangler and JKU Wrangler Unlimited models with 2-4 inch lifts. Can be added to any existing suspension lift.

Fits:

• JK Wrangler (2-door)
• JKU Wrangler Unlimited (4-door)
• Lift Height: 2-4 inches

Includes:

• Alpine Flexarm - Front Upper Preset Control Arms (P/N 1415520) - pair
• Alpine Flexarm - Front Lower Preset Control Arms (P/N 1415500) - pair
• Alpine Flexarm - Rear Upper Preset Control Arms (P/N 1415560) - pair
• Alpine Flexarm - Rear Lower Preset Control Arms (P/N 1415540) - pair
• Sold As A Kit

Features and Benefits:

• Durable 1.625 inch x 0.157 inch(42mm x 4mm) wall DOM (Drawn Over Mandrel) tube provides maximum strength
• Fully-adjustable Alpine Flexarm control arms optimize pinion and caster angles, and tune anti-squat geometry for proper suspension alignment
• Re-centers axles in the wheel well for proper suspension movement or can be used to increase wheelbase
• Full-range of movement will not restrict articulation or flex off-road
• High-quality factory style bushings provide excellent noise, vibration, and harshness (NVH) damping and ride quality characteristics w/ zero maintenance
• Premium black e-dipped coating provides superior durability and corrosion resistance on tube and forged rod end housing
• Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment
• TeraFlex Lifetime Warranty against defects

Flexarm Specs:

• Tube Diameter and Wall: 1-5/8 inch X 0.157 inch (42mm X 4mm)

JK/JKU: Alpine Flexarm Kit - Front Upper Adjustable Control Arms (2-4 inch Lift) - (P/N 1415520)

• Factory Length: 18.75 inch
• Min. Length: 18.5 inch
• Max Length: 19.75 inch
• Both Ends: 7/16 inch (12mm) Bolt
• Thread: 1.25 inch-12 UNF
• Both Bushings: P/N 611014

JK/JKU: Alpine Flexarm Kit - Front Lower Adjustable Control Arms (2-4 inch Lift) - (P/N 1415500)

• Factory Length: 22.625 inch
• Alpine Length: 22.75 inch
• Both Ends: 9/16 inch (14mm) Bolt
• Thread: 1.25 inch-12 UNF
• Both Bushings: P/N 611011

JK/JKU: Alpine Flexarm Kit - Rear Upper Adjustable Control Arms (2-4 inch Lift) - (P/N 1415560)

• Factory Length: 17.4375 inch
• Min. Length: 17.625 inch
• Max Length: 18.875 inch
• Both Ends: 9/16 inch (14mm) Bolt
• Thread: 1.25 inch-12 UNF
• Both Bushings: P/N 611012

JK/JKU: Alpine Flexarm Kit - Rear Lower Adjustable Control Arms (2-4 inch Lift) - (P/N 1415540)

• Factory Length: 19.75 inch
• Min. Length: 19.8125 inch
• Max Length: 21.0625
• Both Ends: 9/16 inch (14mm) Bolt
• Thread: 1.25 inch-12 UNF
• Both Bushings: P/N 611011

Note:

• Install Time: 3.5 Hours
• SKU: 1415610
