The TeraFlex TJ Pro LCG Long Flexarm Suspension System is designed for the aggressive off-road enthusiast who wants the best suspension performance for both rock crawling and high-speed performance. This system is designed as a complete kit and includes all necessary components.
Up front, the Pro LCG suspension system expands the performance of the TJ Wrangler's traditional 5-link suspension configuration with our upper long flexarms, which are more than 9 inches longer than the stock arms. Around back, we replace the stock 5-link suspension and track bar with a new triangulated 4-link rear suspension.
The rear upper brackets feature adjustable anti-squat tunability to fine tune the suspension.
Details:
- TJ 5 Inch Pro LCG Long Flexarm Suspension System w/ High Steer and 9550 Shocks
- Maximum ground clearance w/ a low center-of-gravity
- Allows suspension travel for off-road articulation
- Adjustable anti-squat tunability to fine tune the suspension
- Front upper long flexarms
- 4-link truss and rear upper flexarm geometry eliminates rear track bar
- HD 1-3/4 inch x 0.281 inch wall DOM tubing lower flexarms for superior strength
- Fits all OEM axles including Dana 30, 35, 44, and Rubicon 44
- Sold As A Kit
- SKU: 1249570
Fits Vehicles:
- 1997-2006 Jeep TJ Wrangler
Specs:
- Lift Height: 5 Inches
- Max Tire Diameter: 37 Inches

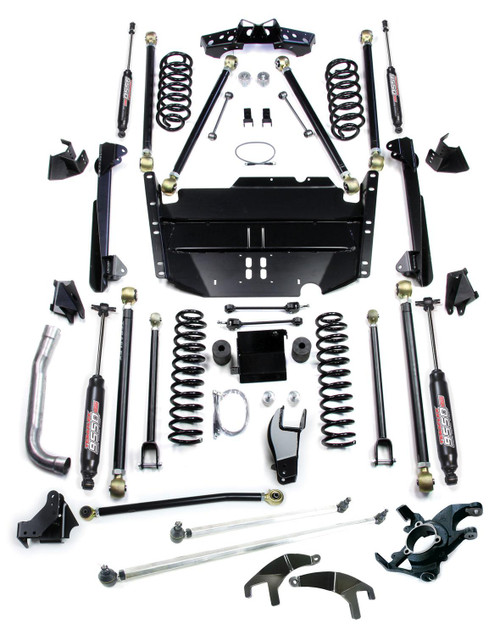

Includes:
- 5 inch lift coil springs
- Lower long flexarms - all 4
- Front upper long flexarms and brackets - pair
- Rear upper 4-link long flexarms and brackets - pair
- 4-link truss
- Adjustable front track bar
- LCG High Steer Kit (P/N 194900)
- TeraFlex 9550 VSS shocks - set of 4
- All necessary hardware
- And more
Notes:
- This is a very heavy item and must be shipped by freight truck
- Cutting and welding required
- Requires exhaust modification w/ custom cat-back exhaust
- Full wheel alignment required
- CV-style driveshaft and Extreme Short Shaft SYE kit recommended
- Rubicon models require compressor mount plate (P/N 4847400)
- Wheel spacers needed w/ stock wheels and tires larger than 32 inches - especially w/ Rubicon wheels
- Transfer case lowering kit recommended for standard-wheelbase Rubicon
- Requires transfer case slip-yoke eliminator kit
- Also available w/ shocks and w/out LCG High Steer Kit (P/N 1249575)
- Also available w/out High Steer Kit or shocks (P/N 1449575)
- Does not fit long-wheelbase LJ Wrangler Unlimited
- Also available for long-wheelbase LJ Wrangler Unlimited w/ LCG High Steer Kit and shocks (P/N 1249580); or w/ shocks and w/out LCG High Steer Kit (P/N 1249585); or w/out High Steer Kit or shocks (P/N 1449585)
- Install Time: 23 Hours
- axle:
- Dana 30|Dana 35|Dana 44
- Included Parts:
- 10" Front Sway Bar Quick Disconnect Kit (3-6" Lift) (# 1743090 - superseded by High Steer)
- location:
- Front/Rear
- Material:
- Steel, polyurethane, rubber
- Title:
- TJ SWB: 5" Pro LCG Long Arm Suspension System, High Steer & 9550 VSS Twin-Tube
- universal:
- No
- Brand Logo:
- https://www.asapnetwork.org/sites/default/files/brands/icons/icon_1.jpg
- Color:
- Black
- Finish:
- Powdercoat
- Includes Shocks:
- TeraFlex 9550 VSS
- Installation Time:
- 23 Hours
- Last Update:
- 2022-07-08 09:27:01
- Lift Height:
- 5 Inch
- Sold As:
- Kit
- Vehicle Type:
- Jeep
- California Prop 65 Notice:
- CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Maximum Tire:
- 37 Inch
