Description

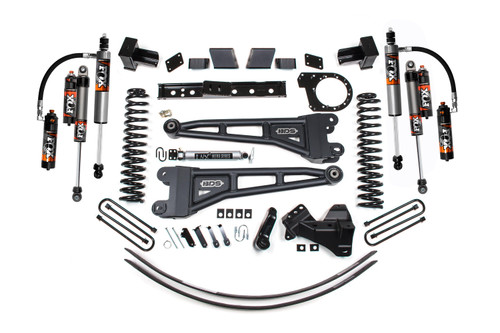

Built for drivers who want more clearance and a stronger stance, the 7 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (20-22) 4WD | Diesel | Leaf Springs / FOX 2.5 Performance Elite transforms your Ford F250/F350 Super Duty (2020-2022) 4WD. It raises the front 7 in. and the rear 6 in. Once installed, it makes room for tires up to 38 x 13.5 in.

This version is matched with FOX 2.5 Performance Elite shocks for damping tuned to the new height. Rear lift is handled by the leaf springs option.

Features

  • Lift height: 7 in. front (coil spring), 6 in. rear
  • Replacement crossmember hardware engineered for the new ride height
  • BDS progressive-rate coil springs deliver the lift with a smooth, predictable ride
  • Fabricated steel lift blocks raise and level the rear
  • New U-bolts sized for the lifted rear
  • Radius arms re-establish caster and axle position at the new height
  • Includes FOX 2.5 Performance Elite shocks
  • Clearance for tires up to 38 x 13.5 in.

Specifications

Life Cycle Status Code
2
Drivetrain
4WD
Engine Type
Diesel
Front Lift Height
7 in.
Front Lift Method
Coil Spring
Max Tire Size
38 x 13.5 in.
Rear Lift Height
6 in.
Rear Lift Option
Leaf Springs
Shock Option
FOX 2.5 Performance Elite
Shocks Included
Yes
California Prop 65 Notice
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Drive
4WD
Fuel Type
Diesel
Kit Components
Includes two BDS003639, 2017-2024 Super Duty 6 inch Rear Leaf Spring, UPC Code 658848611409Includes one BDS013603, 2020-2022 F250/F350 6 inch RA Front Box Suspension System, UPC Code 658848613724Includes one BDS013617, 2017-2022 Super Duty Rear Leaf
Last Update
2026-10-20 16:20:18
Lift Height
7.0 Inch
Sold As
Kit
Universal
No
Vehicle Type
Truck/SUV
Warranty
Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
7 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (20-22) 4WD | Diesel | Leaf Springs / FOX 2.5 Performance Elite

7 Inch Lift Kit w/ Radius Arm | Ford F250/F350 Super Duty (20-22) 4WD | Diesel | Leaf Springs / FOX 2.5 Performance Elite
