Description

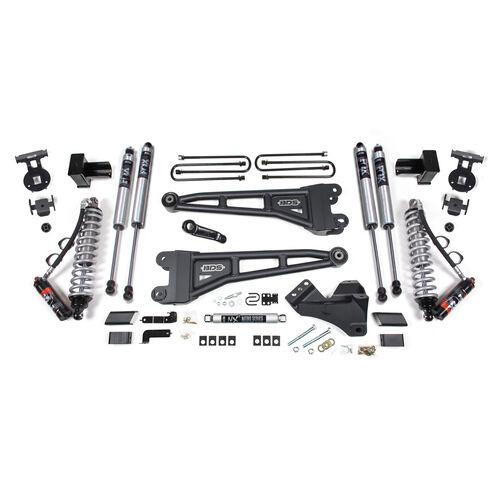

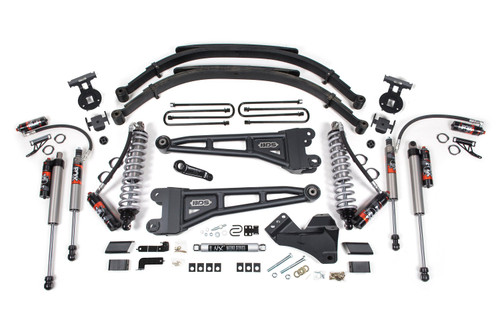

Give your Ford F250/F350 Super Duty (2017-2019) 4WD more height, room for bigger tires, and better trail capability with the 4 Inch Lift Kit w/ Radius Arm | FOX 2.5 Performance Elite Coil-Over Conversion | Ford F250/F350 Super Duty (17-19) 4WD | Diesel | Leaf Springs / FOX 2.5 Performance Elite. It provides 4 in. of front lift. Once installed, it makes room for tires up to 37 x 12.5 in.

This version is matched with FOX 2.5 Performance Elite shocks for damping tuned to the new height. Rear lift is handled by the leaf springs option.

Features

  • Lift height: 4 in. front (coil-over)
  • Heavy-duty rear lift blocks for added height without sacrificing load capacity
  • New U-bolts sized for the lifted rear
  • Radius arms re-establish caster and axle position at the new height
  • Track bar components keep the axle centered under the vehicle
  • Pitman arm correction keeps steering geometry in line
  • Sway bar relocation brackets restore proper bar geometry
  • Includes FOX 2.5 Performance Elite shocks

Specifications

Life Cycle Status Code
2
Drivetrain
4WD
Engine Type
Diesel
Front Lift Height
4 in.
Front Lift Method
Coil-Over
Max Tire Size
37 x 12.5 in.
Rear Lift Option
Leaf Springs
Shock Option
FOX 2.5 Performance Elite
Shocks Included
Yes
California Prop 65 Notice
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Drive
4WD
Fuel Type
Diesel
Kit Components
Includes two BDS003639, 2017-2024 Super Duty 6 inch Rear Leaf Spring, UPC Code 658848611409Includes one BDS013414, 2017-2024 Super Duty 4 inch Front Box Kit, UPC Code 658848613458Includes one BDS013438, 2017-2024 Ford F250/F350 4 inch Rear Leaf Spri
Last Update
2026-10-20 16:21:17
Lift Height
4.0 Inch
Sold As
Kit
Universal
No
Vehicle Type
Truck/SUV
Warranty
Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
4 Inch Lift Kit w/ Radius Arm | FOX 2.5 Performance Elite Coil-Over Conversion | Ford F250/F350 Super Duty (17-19) 4WD | Diesel | Leaf Springs / FOX 2.5 Performance Elite

4 Inch Lift Kit w/ Radius Arm | FOX 2.5 Performance Elite Coil-Over Conversion | Ford F250/F350 Super Duty (17-19) 4WD | Diesel | Leaf Springs / FOX 2.5 Performance Elite

BDSBDS1970FPE
