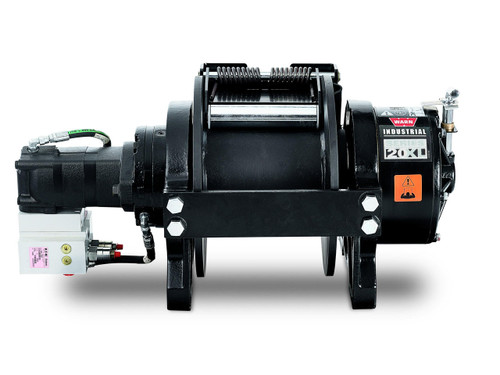

Series 20XL Hydraulic Winch with Standard Drum and Air Clutch
The Series 20XL Hydraulic Winch is designed for heavy-duty applications, featuring a standard drum, air clutch, and a pull capacity of 20,000 pounds. It is an ideal solution for wreckers, trailers, and other severe-duty applications.
Please Note: This product requires a compatible bumper or mounting plate for proper installation. Visit our Mounting & Protection category for available options.
Warn Industrial hydraulic winches offer unmatched performance for hydraulic winching applications. Equipped with powerful hydraulic motors, they provide extended duty cycles. The two-stage planetary gear train, constructed from hardened steel, ensures efficient, reliable operation with fast line speeds. These winches meet world-class quality and safety standards, similar to their electric counterparts.
Key Features:
- 8.0 Cubic Inch High-Performance Motor: Delivers a 20,000-pound capacity, great for wreckers, trailers, and severe-duty applications.
- Spring Applied Disc Brake: Holds the full-rated load.
- Hardened Aircraft Grade Nickel Chromalloy Two-Stage Planetary Gear Train: Ensures speed and reliability in challenging conditions.
- Available in Short and Long Drum Versions: Choose the version that best suits your needs.
- Meets SAE J706 and CE Specifications: Conforms to industry standards for safety and quality.
- Limited Lifetime Warranty for Mechanical Components.
- Limited Five (5) Year Warranty for Electrical Components.
Product Specifications:
- Type: Hydraulic
- Mount Type: Vehicle Mounted
- Recommended Use: Industrial
- Voltage: Not Applicable
- Motor Horsepower: Not Applicable
- Electrical Control Type: Not Applicable
- Thermal Shutoff: No
- Drive Gear Type: Planetary
- Gear Reduction Ratio: 28.5:1
- Free Spooling: Yes
- Brake Type: Spring Applied Disc
- Line Diameter (IN): No Rope
- Line Length (FT): No Rope
- Line Material: No Rope
- Fairlead Type: No Fairlead
- Conforms to J706 Standards: Yes
- Remote Type: No Remote
- Mounting Hole Quantity: 8
- Operation Type: Automatic
- Mounting Pattern Length (IN): 18 Inch
- Mounting Pattern Width (IN): 7-1/2 Inch
- Includes Mounting Hardware: No
- Color: Black
- Max Line Pull / Line Speed: 20,000 Pounds / 28.5 Feet Per Minute
