FEATURES
-2 x 10W 4" Gravity® LED Fog Lights
-Lightweight Magnesium Housing for Maximum Heat Dissipation
-UV Treated Shatter Resistant Polycarbonate Lens
-Street Legal Fog Beam Pattern
LIGHT PERFORMANCE (PER LIGHT)
-Raw Lumens: 866 lm
-Compliance: SAE J583 & ECE-R19
-Lux @ 10 Meters: 150 lx
-Candela: 150,000 cd
-Beam Distance (Meters): 245m
SPECIFICATIONS (PER LIGHT)
-Wattage: 10W
-LED Source: CREE XP-G R4
-Color: 5000K
-Amp Draw: .74A
-Voltage: 9V-32V
-IP Rating: IP68
-Dimensions: W - 3.94" x H - 3.94" x D - 2.97"
PARTS INCLUDED

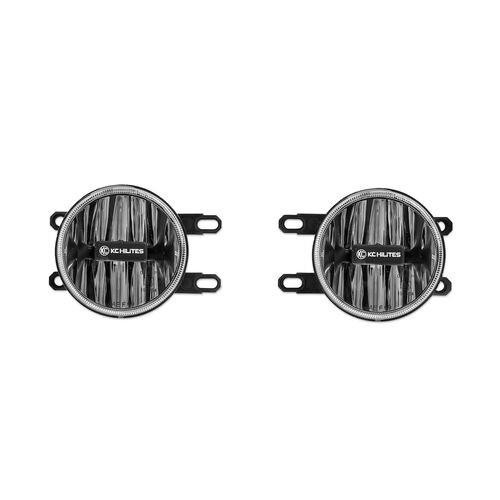

-(2) 10W 4" Gravity® G4 LED Fog lights and Brackets for 12-23 Toyota Tacoma
-H11 Wiring Harness w/ 2-Pin weather-proof connectorsTOYOTA AND LEXUS OE FOG LIGHT MOUNTING
KC's G4 LEDs fits various 06-22 Toyota/Lexus/ models, mounting to OEM bolt holes to deliver powerful light output.
KC's Gravity G4 Toyota LED Fog Light Fits-12-23 Toyota Tacoma
-14-21 Toyota Tundra
-10-24 Toyota 4Runner
-06-12 Toyota Rav4
-13-15 Lexus: IS,ES,GS,RX,LX
GRAVITY® EXTREME OUTPUT AND EFFICIENCY
The 4" Gravity® LED Fog Lights are powered by KC's patented Gravity® Reflective Diode(GRD) and optical reflectors to deliver an incredible 150 lx @ 10m using only .74 Amps per light. Our GRD system aims the LEDs into the precision-designed reflectors to capture all the light and project it forward.
STREET LEGAL FOG BEAM PATTERN
Fog Beam- Provides a low, wide-angle light pattern that increases visibility in conditions like dust, fog, snow and rain.
STRENGTH & DURABILITY
Using high-quality electroplated aluminum housing and Polycarbonate lens in a self-contained housing, impermeable to dust and moisture.
- Amp Draw:
- .74A
- Beam Distance [m]:
- 245m
- Beam Pattern:
- Fog
- Candela:
- 150,000 Cd
- Compliance:
- SAE J583 ECE-R19
- IP Rating:
- IP68
- LED Source:
- CREE XP-G R4
- Lumens:
- 866
- LUX:
- 150
- LUX @ 10m:
- 150 lx
- Parts Included:
- (2) 10W 4 in Gravity(R) G4 LED Fog lights and Brackets for 12-22 Toyota Tacoma, 2 x 10W 4 in Gravity LED Fog Lights, H11 Wiring Harness w/ 2-Pin weatherproof connectors
- Product Dimensions:
- W 3.94 in x H 3.94 in x D 2.97 in
- Raw Lumens:
- 866 lm
- Title:
- KC Hilites 4 in Gravity LED G4 - 2-Light System - SAE/ECE - 10W Fog Beam - for 12-18 Toyota Tacoma
- Voltage [V]:
- 9V-32V
- Wattage:
- 10W
- California Prop 65 Notice:
- WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Color Temperature:
- 5000K
