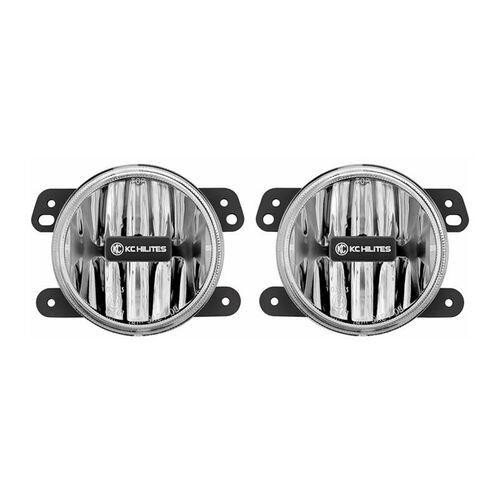

KC G4 Gravity LED 4in SAE ECE 2-Light System 2010-2024 Jeep JK JL JT
KC Hilites 4" Gravity LED Fog Light feature bright CREE LEDs in a street legal fog beam pattern. Sealed magnesium housing and polycarbonate lens. Pair pack includes factory wire connectors and bracket for easy mounting on 10-24 Jeep JK/JL/JTs.
FEATURES
-2 x 10W 4" Gravity LED Fog Lights
-Lightweight Magnesium Housing for Maximum Heat Dissipation
-Street Legal 10-24 Jeep JK/JL/JT Applications
-Shatter Resistant Polycarbonate Lens
-Fog Beam Pattern (SAE & ECE Street Legal) NOTES-Does not fit Jeep Hard Rock Edition bumper, steel or sport bumpersLIGHT PERFORMANCE (PER LIGHT)
-Raw Lumens: 866 lm
-Compliance: SAE J583 & ECE-R19 Street Legal
-Lux @ 10 Meters: 150 lx
-Candela: 150,000 cd
-Beam Distance (Meters): 245m
SPECIFICATIONS (PER LIGHT)
-Wattage: 10W
-LED Source: CREE LED
-Color Temperature: 5000K
-Amp Draw: .74A
-Voltage: 9V-32V
-IP Rating: IP68
-Product Dimensions: W - 3.94" x H - 3.94" x D - 3.44"
PARTS INCLUDED
-(2) 10W 4" Gravity G4 LED Fog lights
-Universal Adjustable Bracket
-Deluxe Wiring Harness w/ 2-Pin weatherproof connectors
-30A LED Switch w/Panel
GRAVITY EXTREME OUTPUT AND EFFICIENCY
4" Gravity LED Fog Lights are powered by KC's patented Gravity Reflective Diode (GRD) and optical reflectors to deliver an incredible 150 lx @10m using only .74A per light. KC's patented GRD system aims LEDs into precision reflectors, capturing all light to project it forward.
AVAILABLE BEAM PATTERN AND ADVANTAGES
Fog Beam- Provides a low, wide-angle light pattern that increases short-range visibility in conditions like dust, fog, snow and rain.
ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION
KC's Innovative adjustable mount allows users to easily adjust the aiming of lights horizontally for an optimum and consistent beam angle. KC's mounting system bolts directly to OE 10-18 Jeep JK bumper and fog light harness.
STRENGTH & DURABILITY
Constructed from an IP68 rated magnesium housing and polycarbonate lens creating a fully self contained LED light housing.
- Add-On:
- N/A
- Amp Draw:
- .74A
- Beam Distance [m]:
- 245m
- Beam Pattern:
- Fog
- Candela:
- 150,000 Cd
- Color Temperature:
- 5000K
- Compliance:
- SAE J583 ECE-R19 Street Legal
- IP Rating:
- IP68
- LED Source:
- CREE LED
- Light Temp:
- 5000K
- Lumens:
- 866
- LUX:
- 150
- LUX @ 10m:
- 150 lx
- Parts Included:
- (2) 10W 4 in Gravity(R) G4 LED Fog lights, 2 x 10W 4 in Gravity(R) LED Fog Lights, 30A LED Switch w/Panel, Deluxe Wiring Harness w/ 2-Pin weatherproof connectors
- Product Dimensions:
- W 3.94 in x H 3.94 in x D 3.44 in
- Raw Lumens:
- 866 lm
- Title:
- KC Hilites 4 in Gravity LED G4 - 2-Light System - SAE/ECE - 10W Fog Beam - for 10-18 Jeep JK
- Voltage [V]:
- 9V-32V
- Wattage:
- 10W
- California Prop 65 Notice:
- No
